STF – Head and Tailstock Cradle-Type

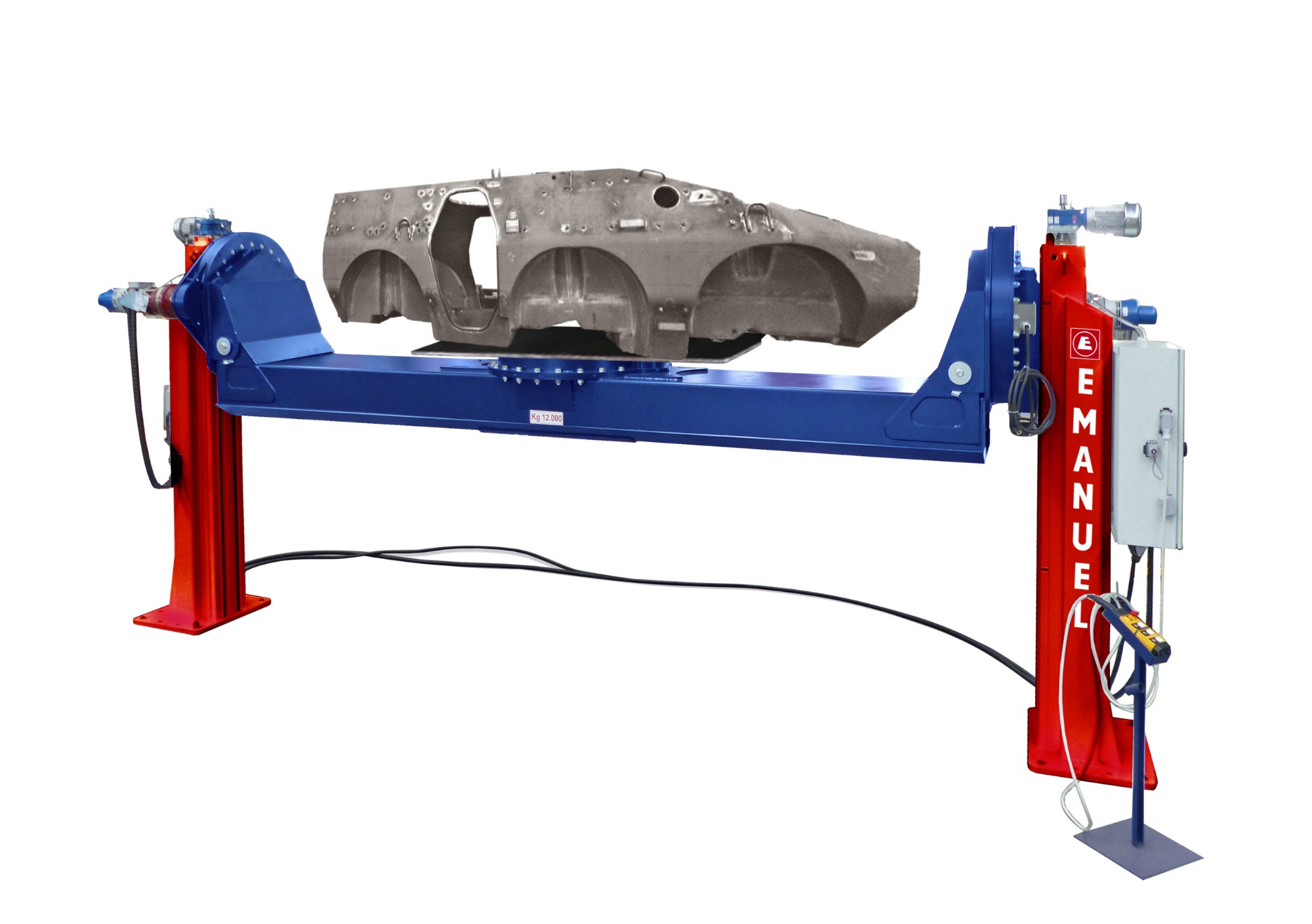

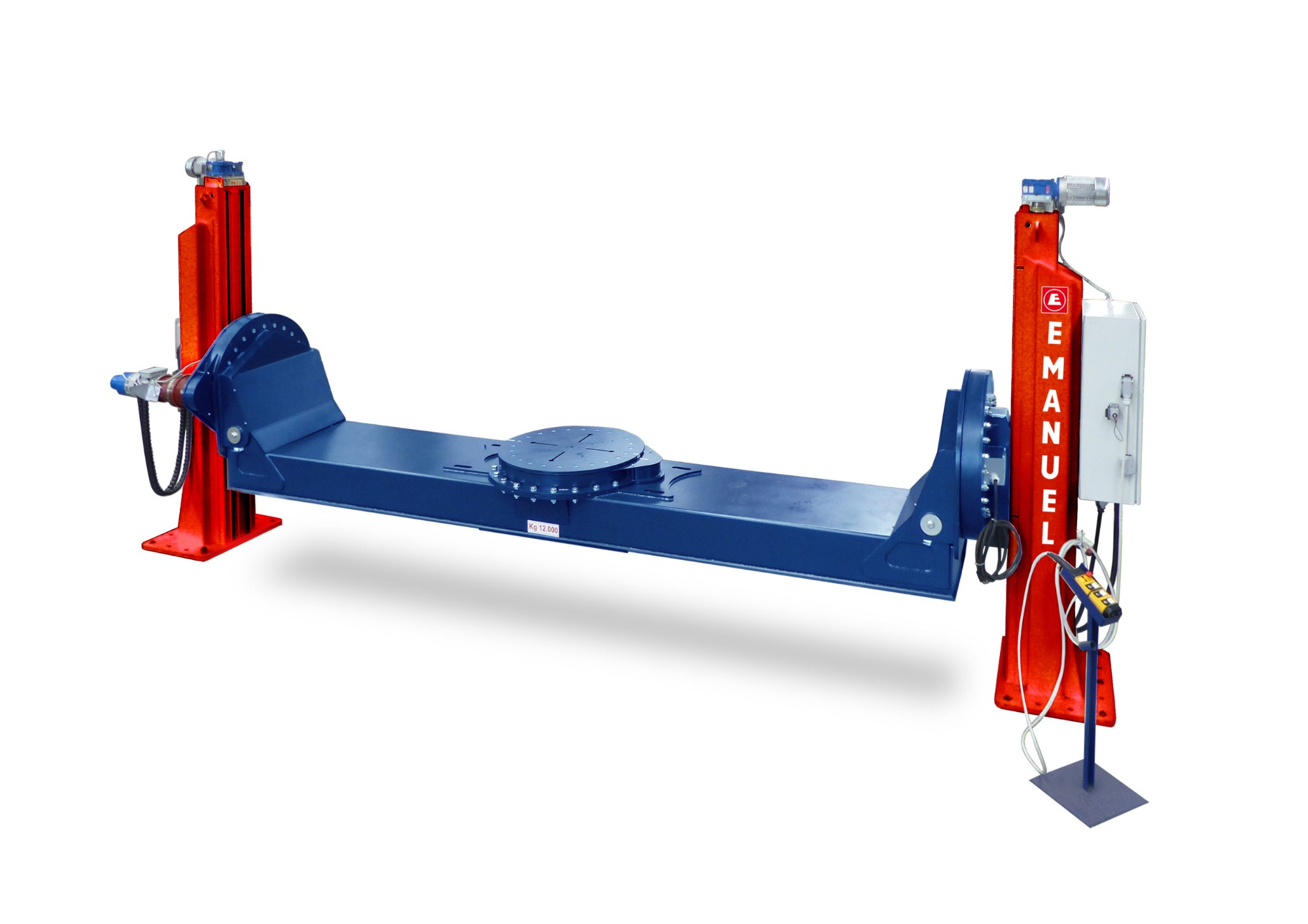

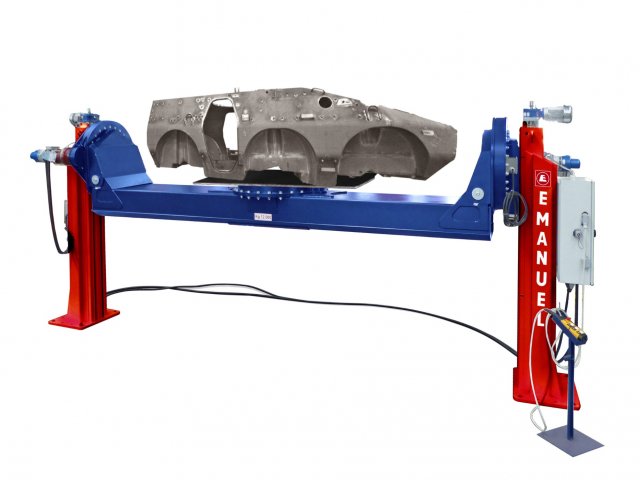

The STF head and tailstock cradle-type is a double column fixed machine a with central saddle, that allows the lifting and the rotation of any kind of frame.
The STF Head and tailstock cradle-type positioners are an excellent solution in applications in which it is required the complete rotation of all 3 axis that need to be easily reached during the welding and assembly procedures.
Ergonomic positioners are used during welding and assembly operations of big weldments that are manufactured by companies of all sectors. Compared to similar products, Emanuel ergonomic positioners feature unique caractestictis such as: compact design, flexibility and lightness.
Emanuel column positioners are built according to the customer’s specific needs.
Advantages
Emanuel positioners offer many advantages:
- Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
- Health: welders and operators always maintain the correct posture and reduce fatigue.
- Improved production quality: allow to work at an ideal height and in correct position.
- Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes
Sectors
The sector of application in welding and assembly are the most varied:
- Truck frames and tanks
- Earth moving machines and components
- Railway bogies, train cars and frames
- Automotive and military vehicles
- Agricultural vehicles and machinery
- And many other
Main features

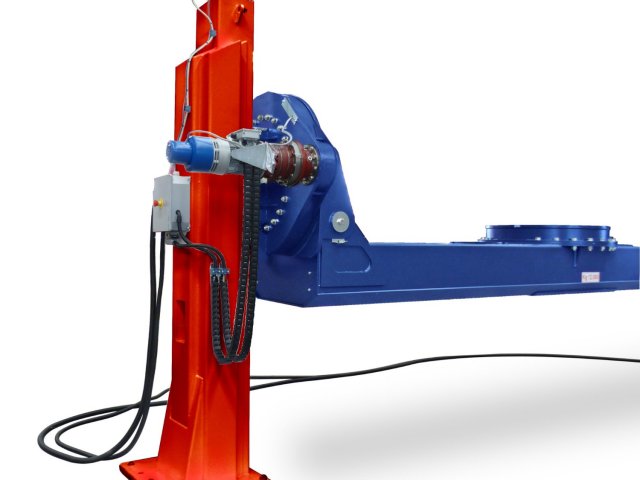

The lifting of the X axe is mechanical, generated by a gear motor and screwnut connected to the loadsupporting device composed of a steel bracket.
The rotation of the Y and Z axes is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.

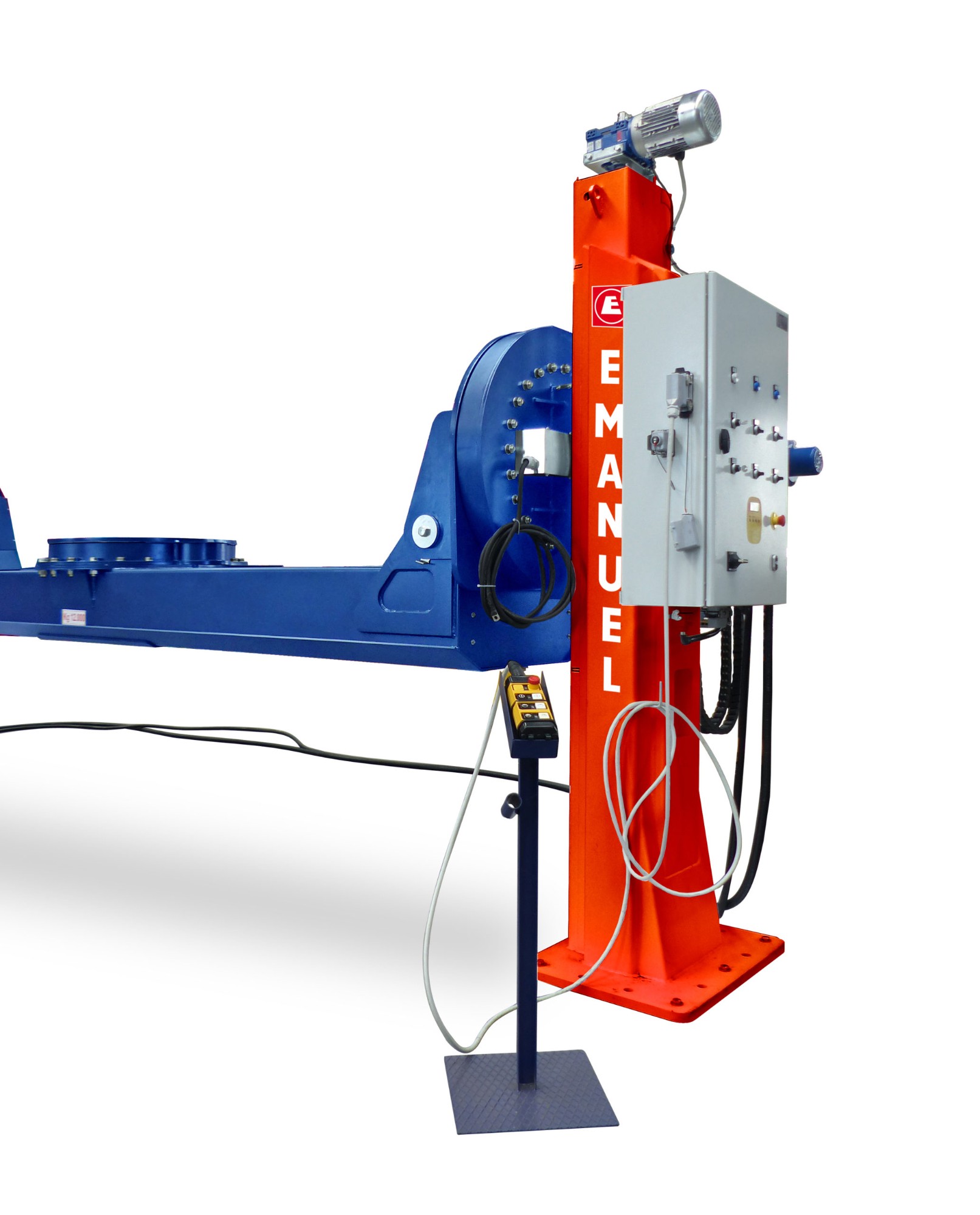

All the controls are on the control unit and on the hand held remote, which are installed on the master column or a wheeled trolley.
Most of the technical features can be customized.
Our positioners can feature for 4.0 Industry.
STF – Head and Tailstock Cradle-Type
STF – Head and Tailstock Cradle-Type
STF – Head and Tailstock Cradle-Type
STF – Head and Tailstock Cradle-Type
STF – Head and Tailstock Cradle-Type
STF – Head and Tailstock Cradle-Type

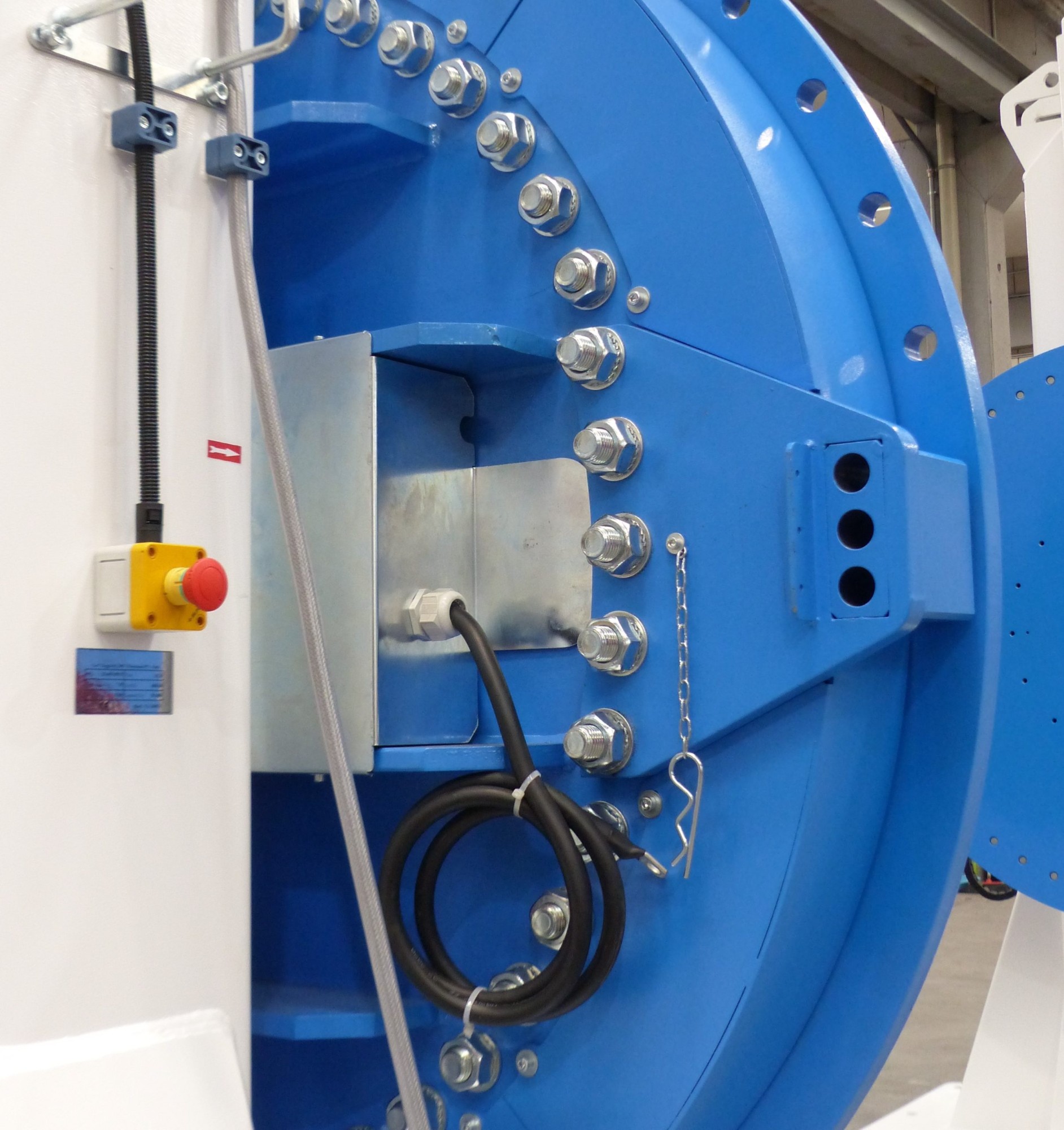

Rotary ground 400A-800A-1200A

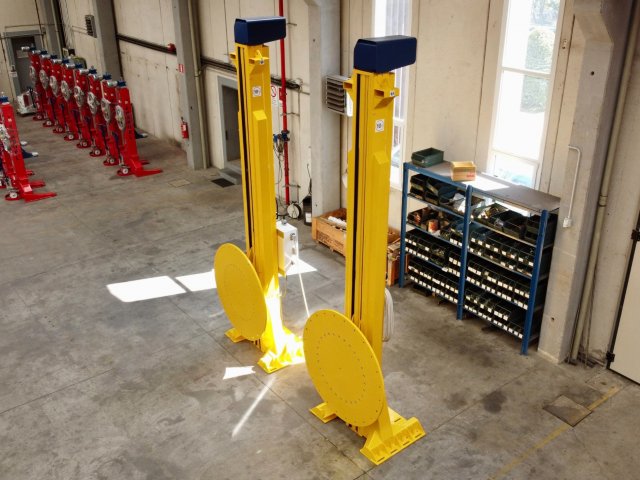

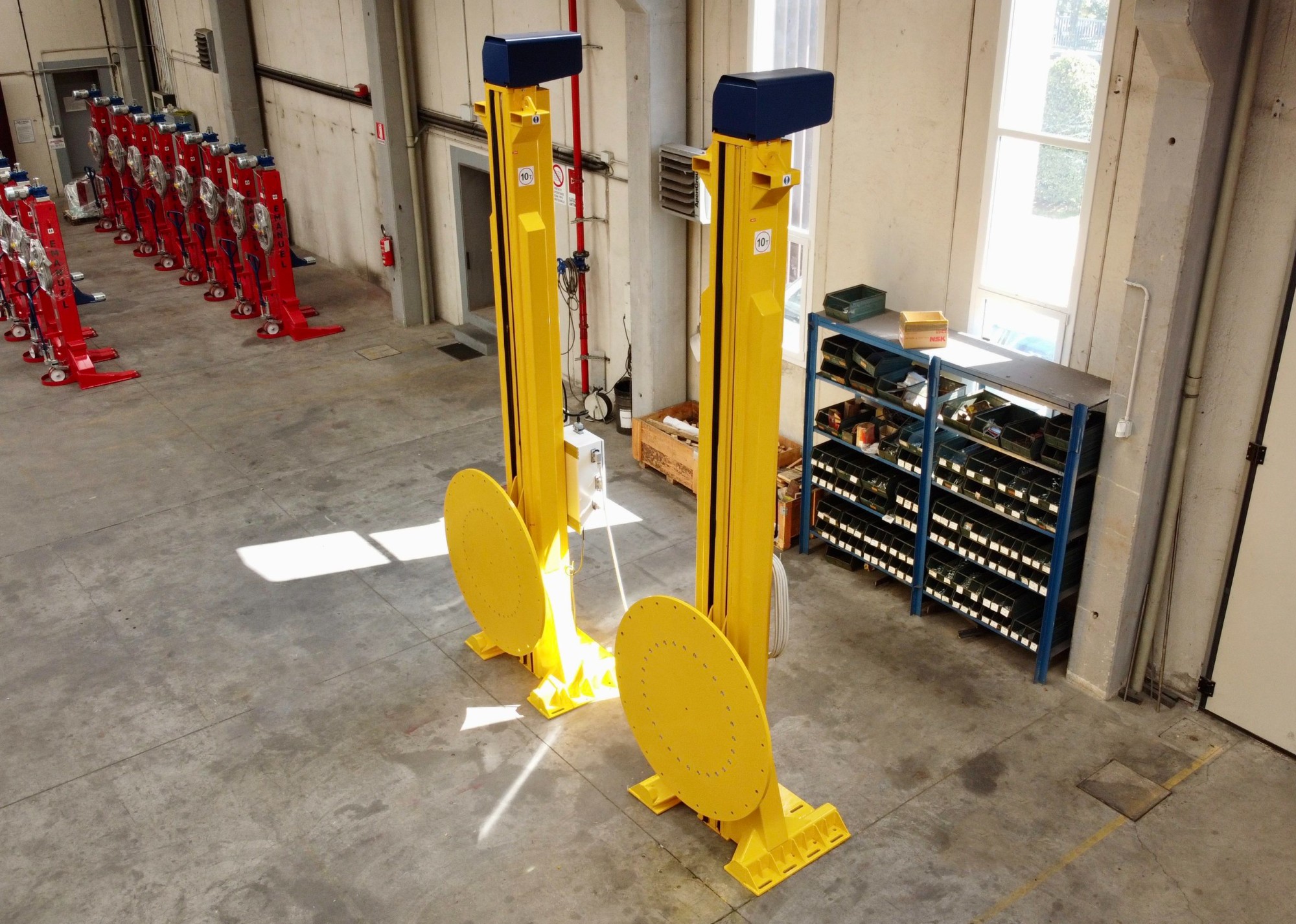

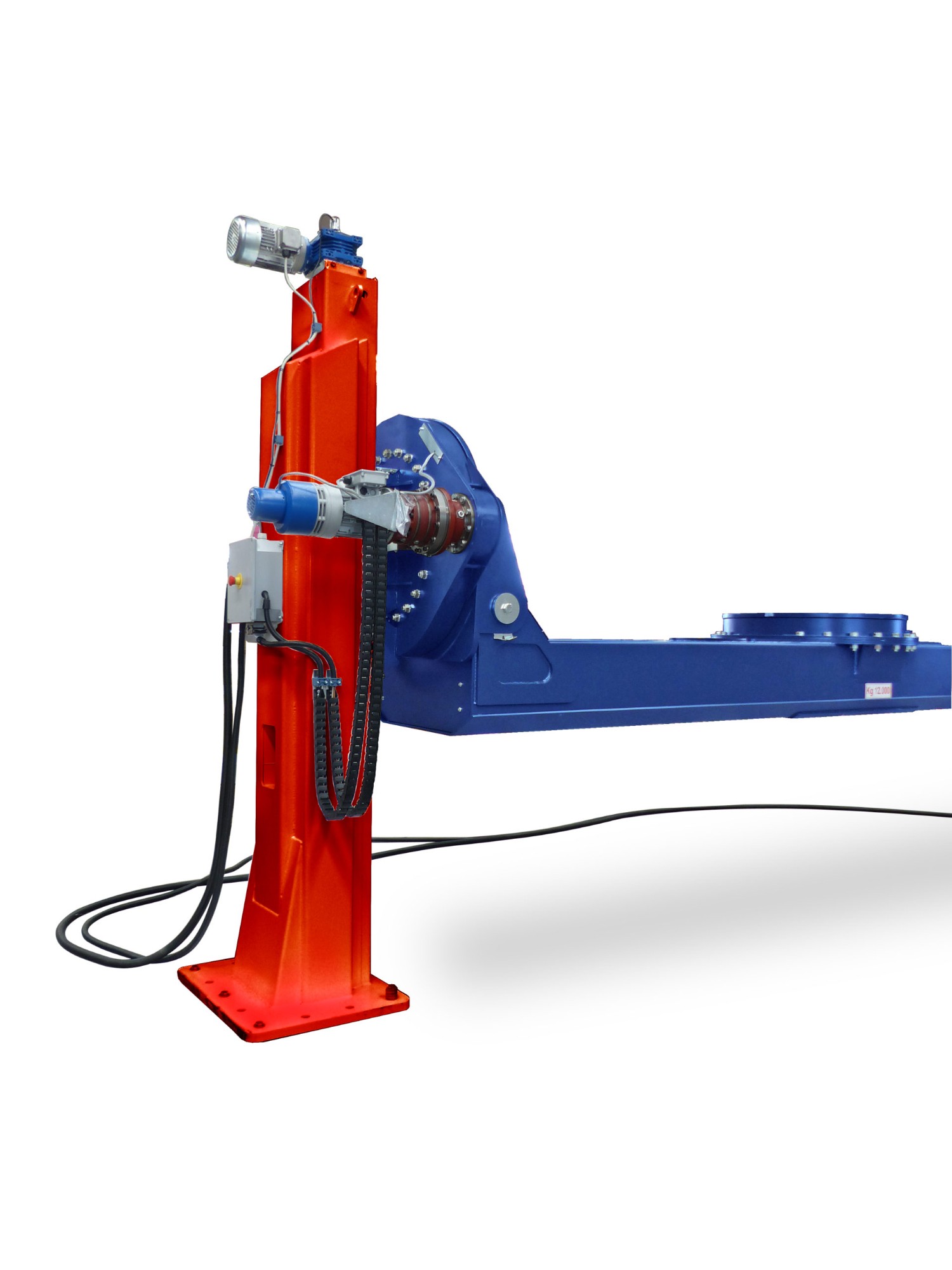

Extra stroke in column height

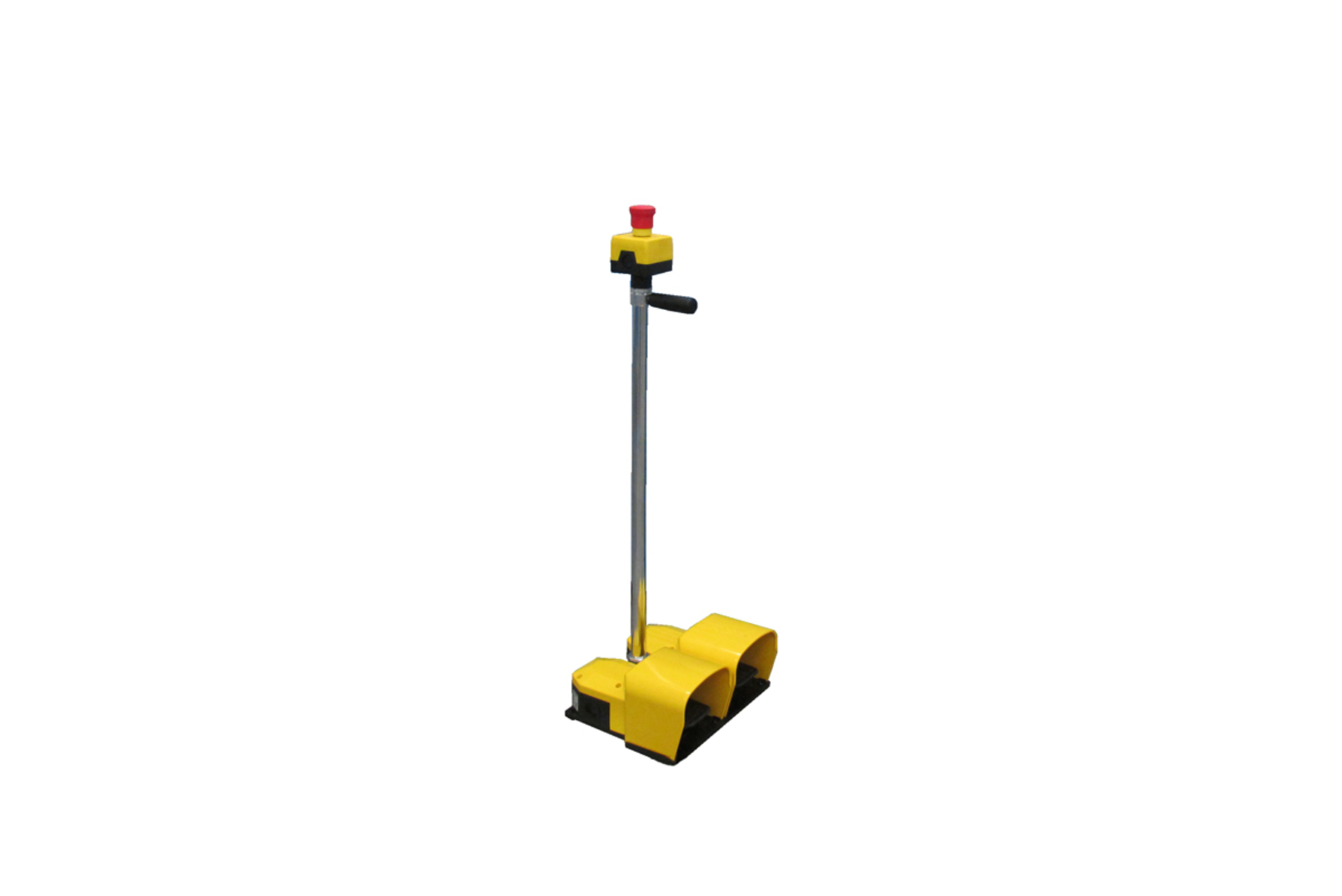

Foot switch

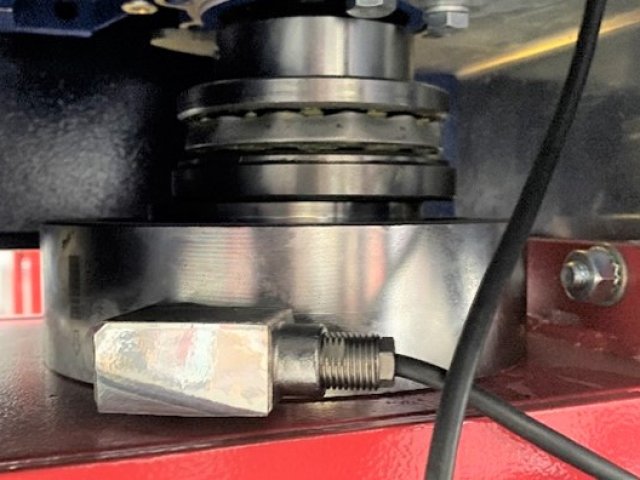

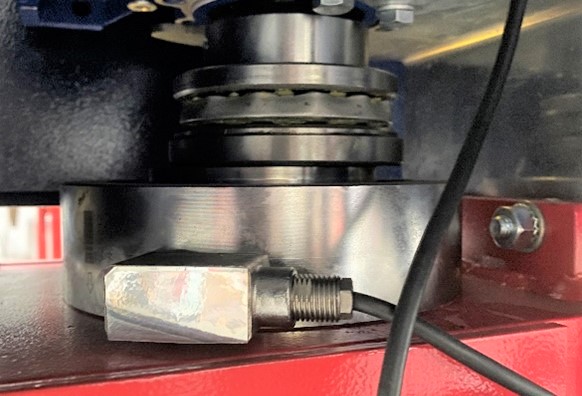

Load cell system

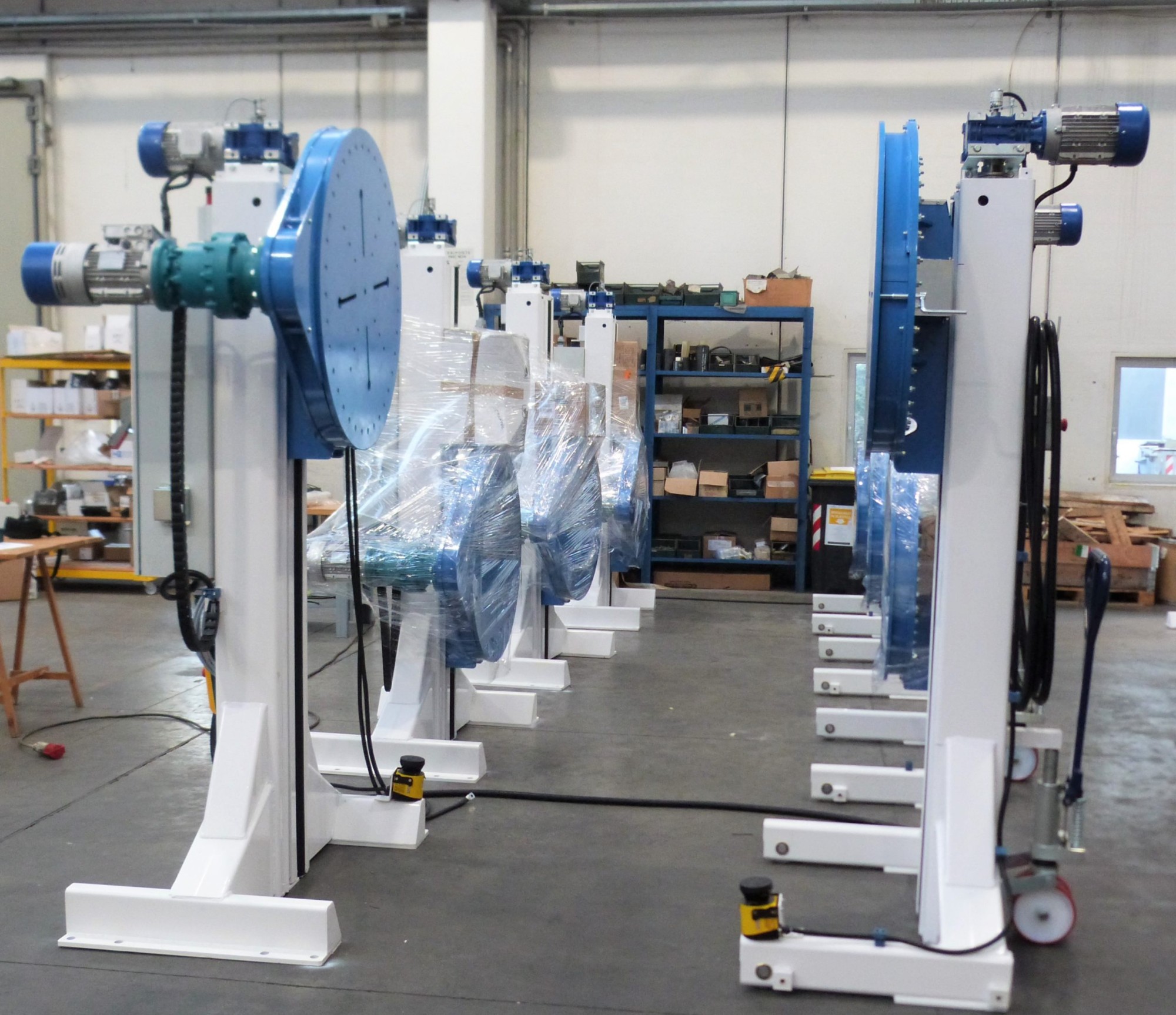

Safety laser scanner

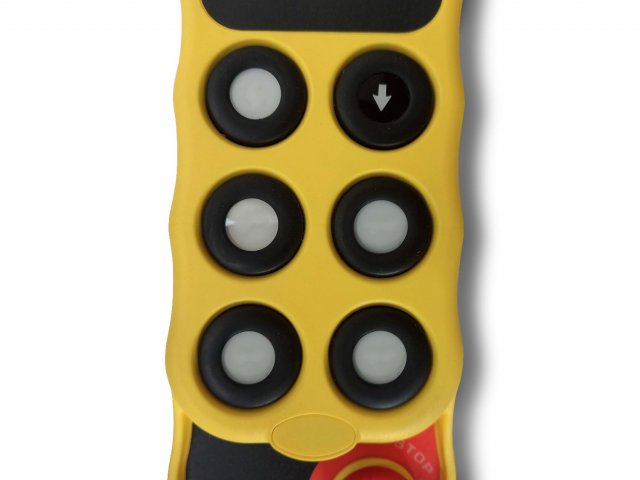

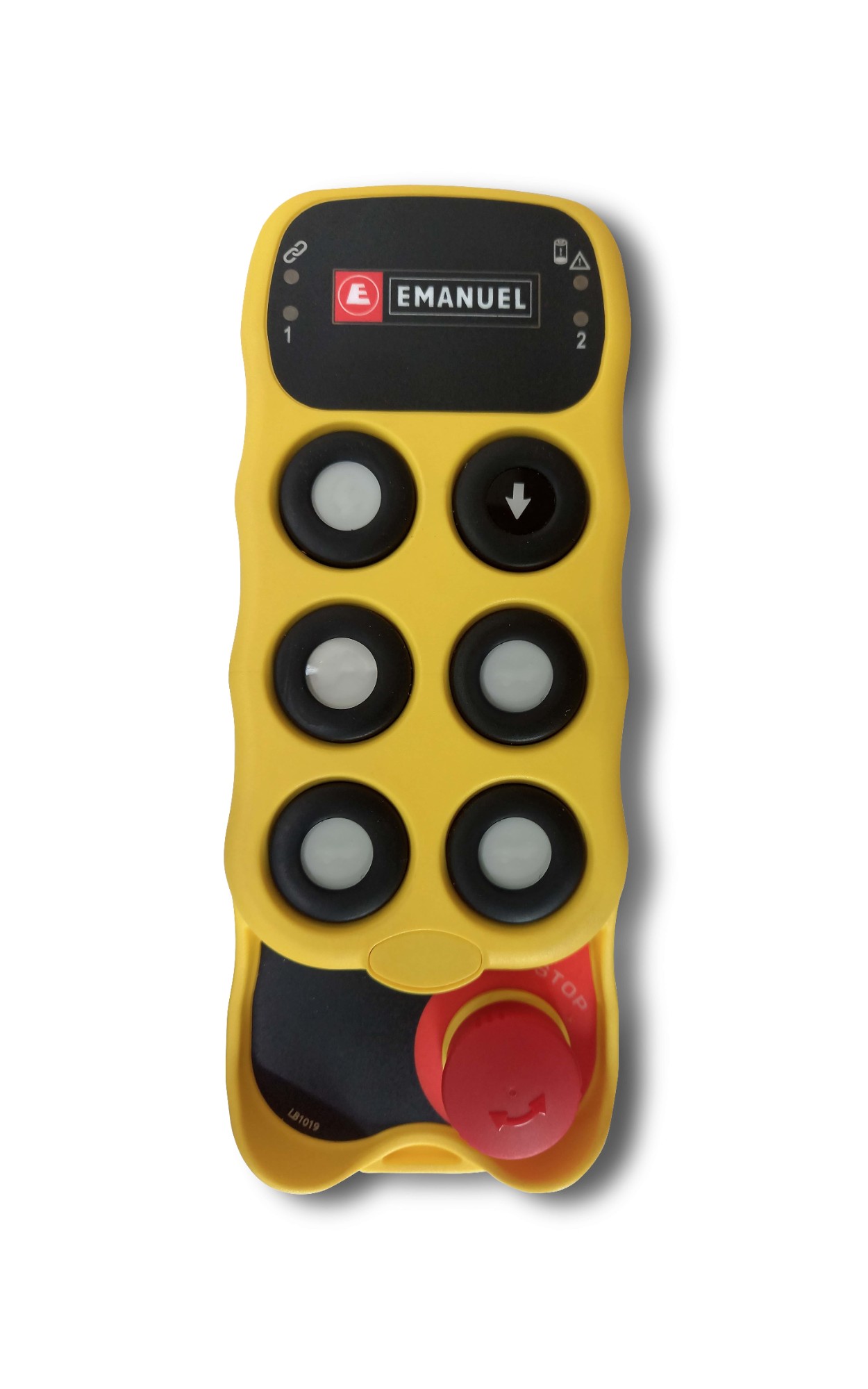

Safety wireless remote

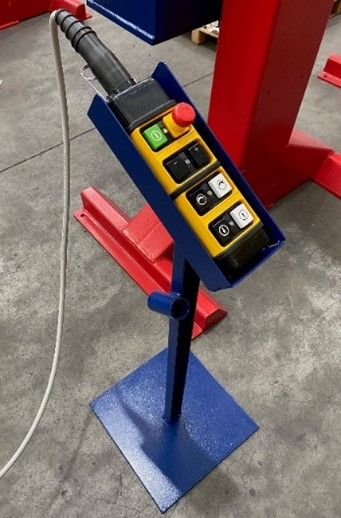

Self-learning hardware & software system

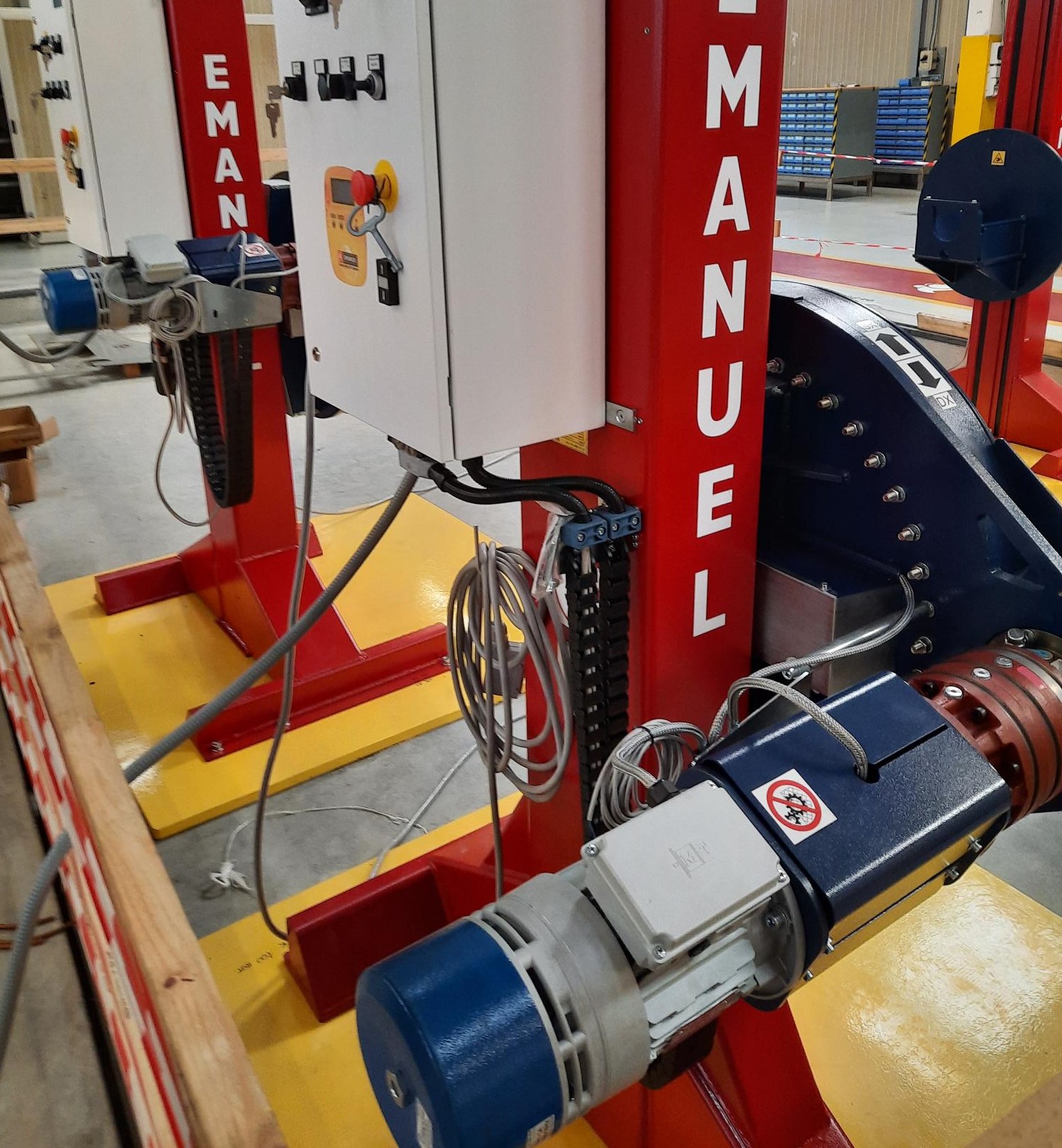

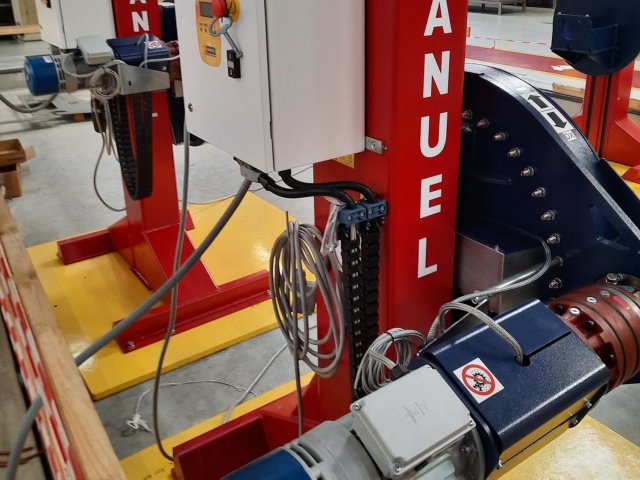

Torque live detection system

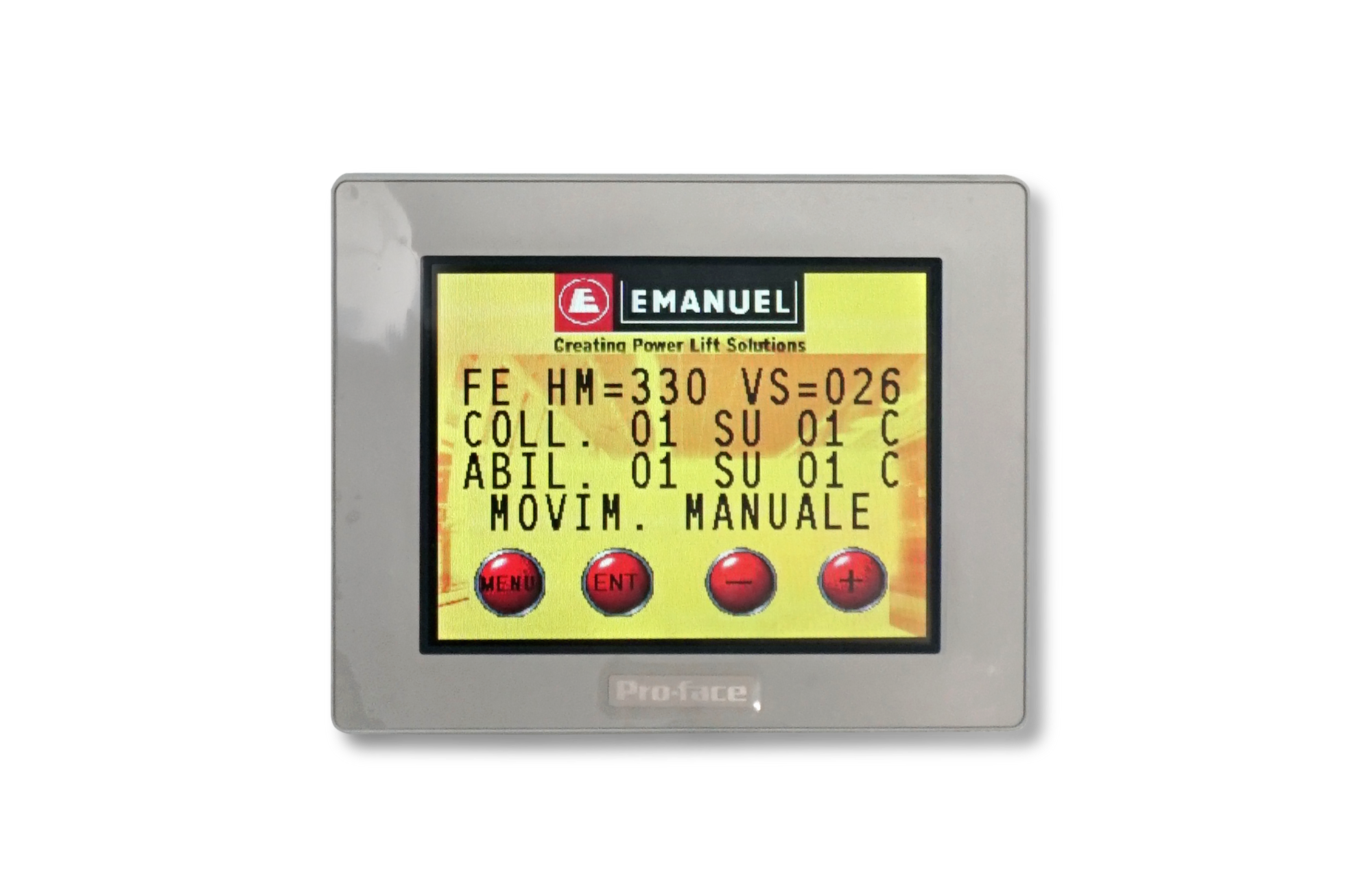

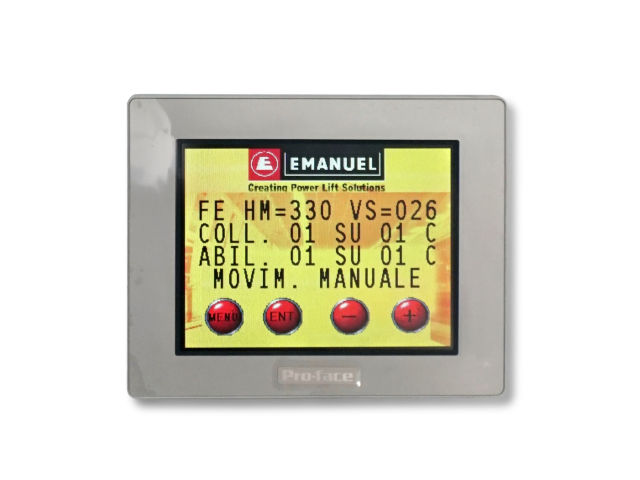

Smart interface
