Hydraulic mould carriers

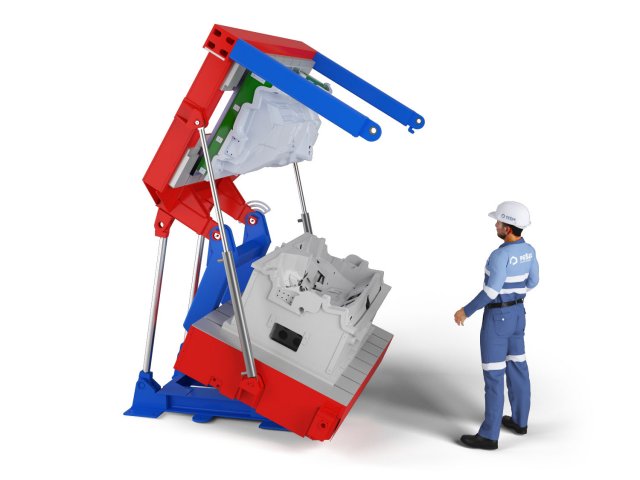

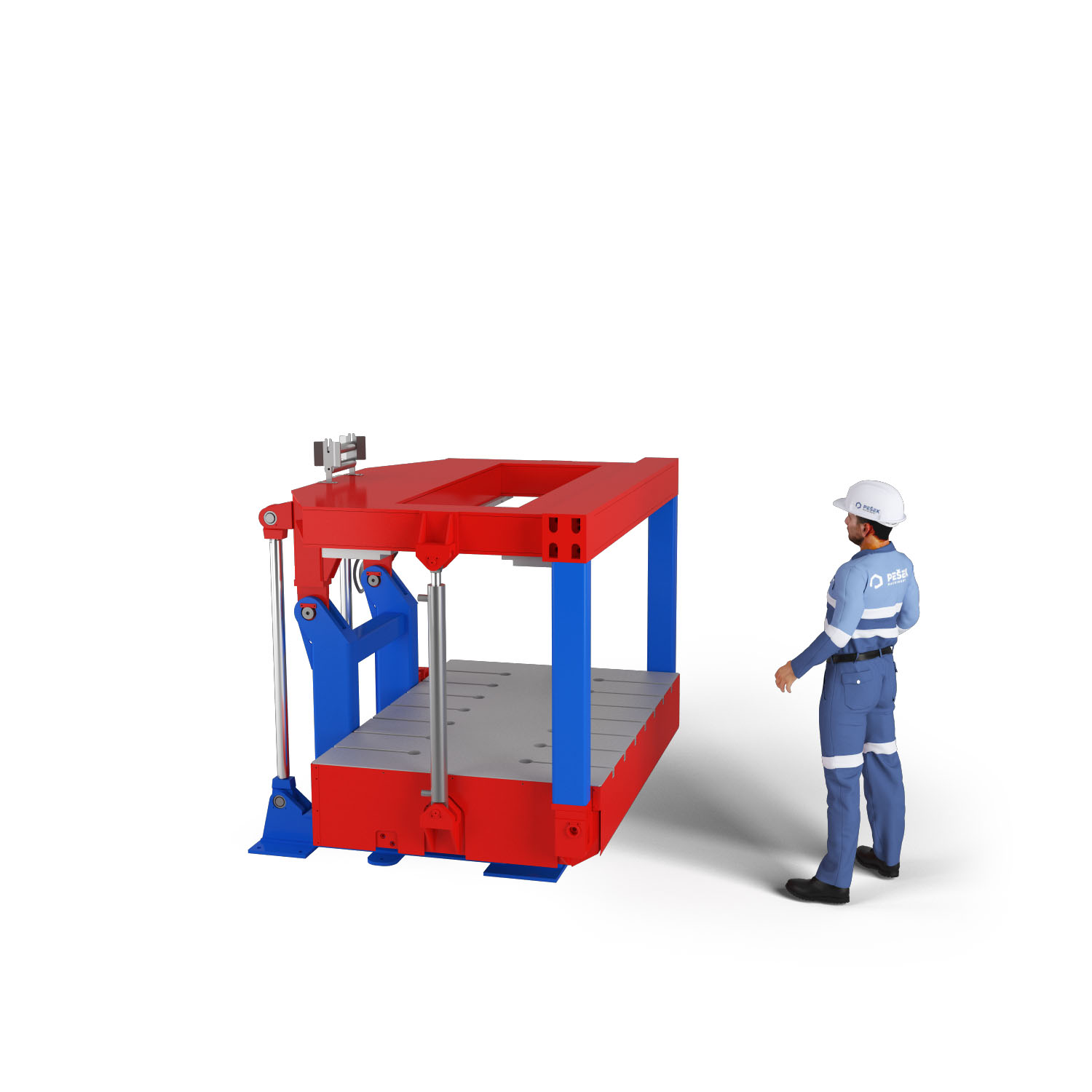

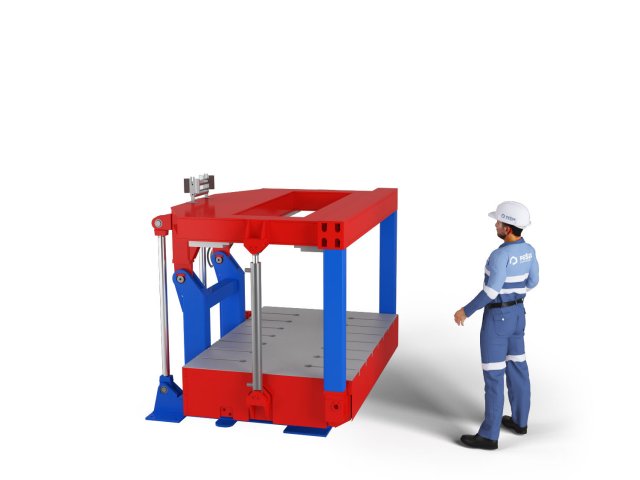

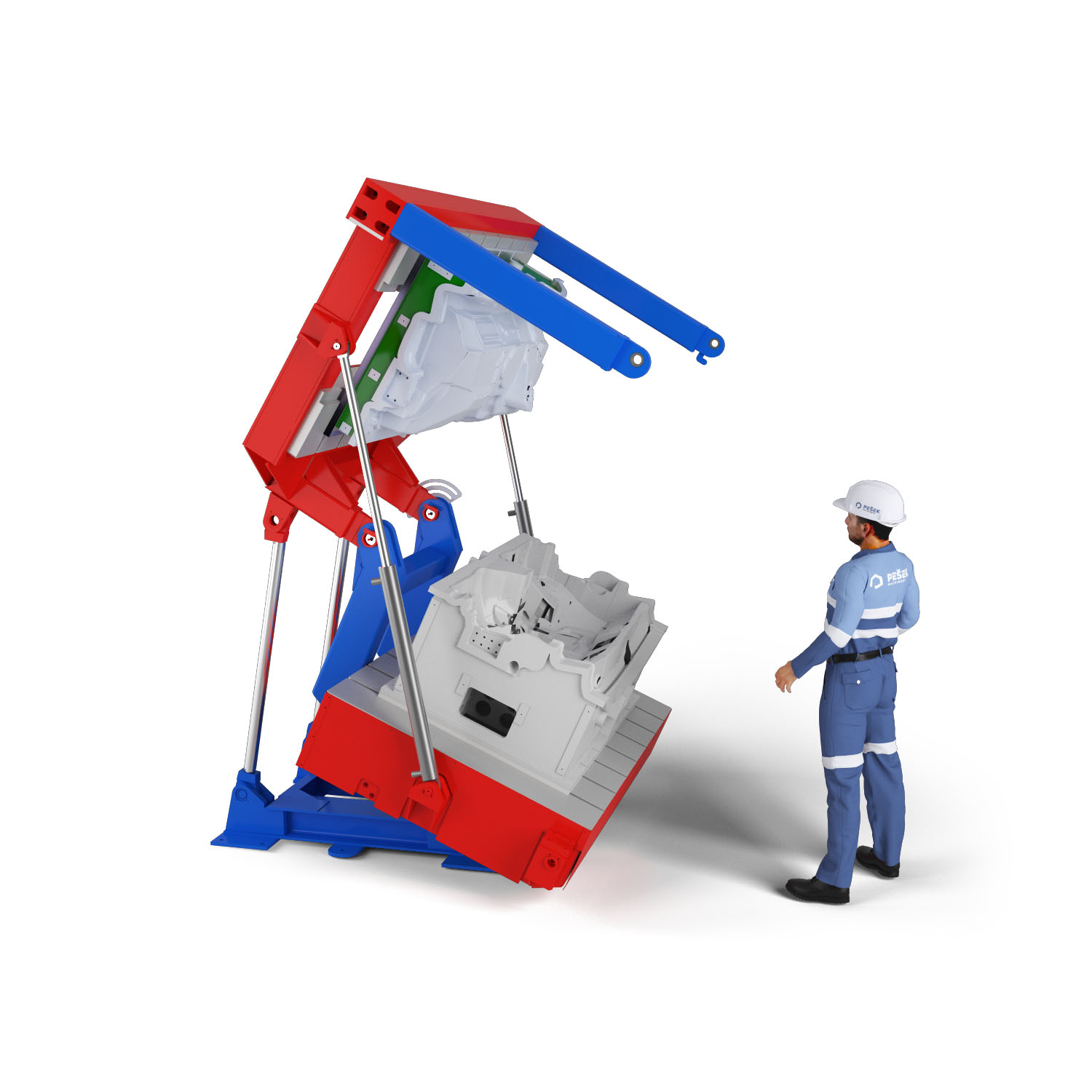

Mould carrier, type 200
Technical parameters
- Lower tipping frame 20°
- Opening angle of 70°
- Clamping plate lifted by air bellows or hydraulic cylinders of up to 200 mm
- Precise clamping plate guiding by means of a rack and gearwheel system
- Tool clamping in different ways
- Maximum closing force: A 240 kN, B 300 kN
- Maximum tool weight: A 3,000 kg, B 4,000 kg
- Maximum tool dimensions: A 1550x950x650 mm, B 1900x1100x850 mm

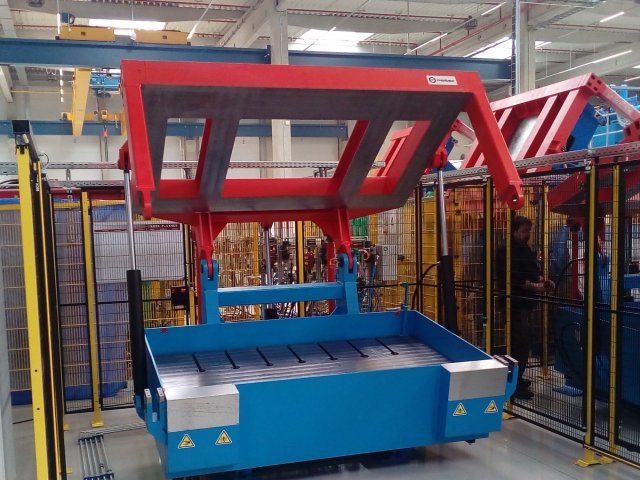

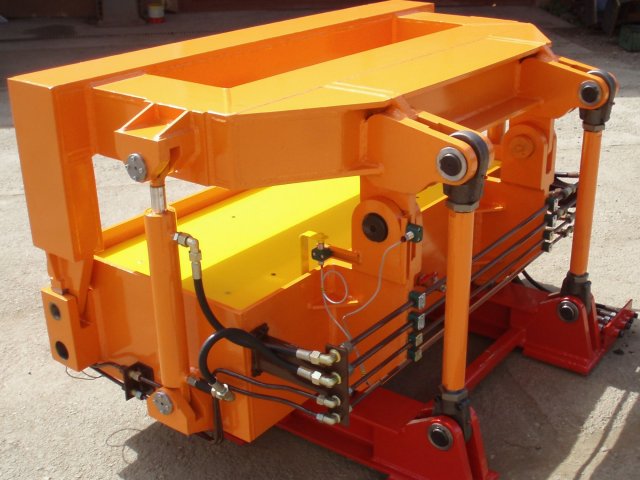

Mould carrier, type 200 (year of production 2019)

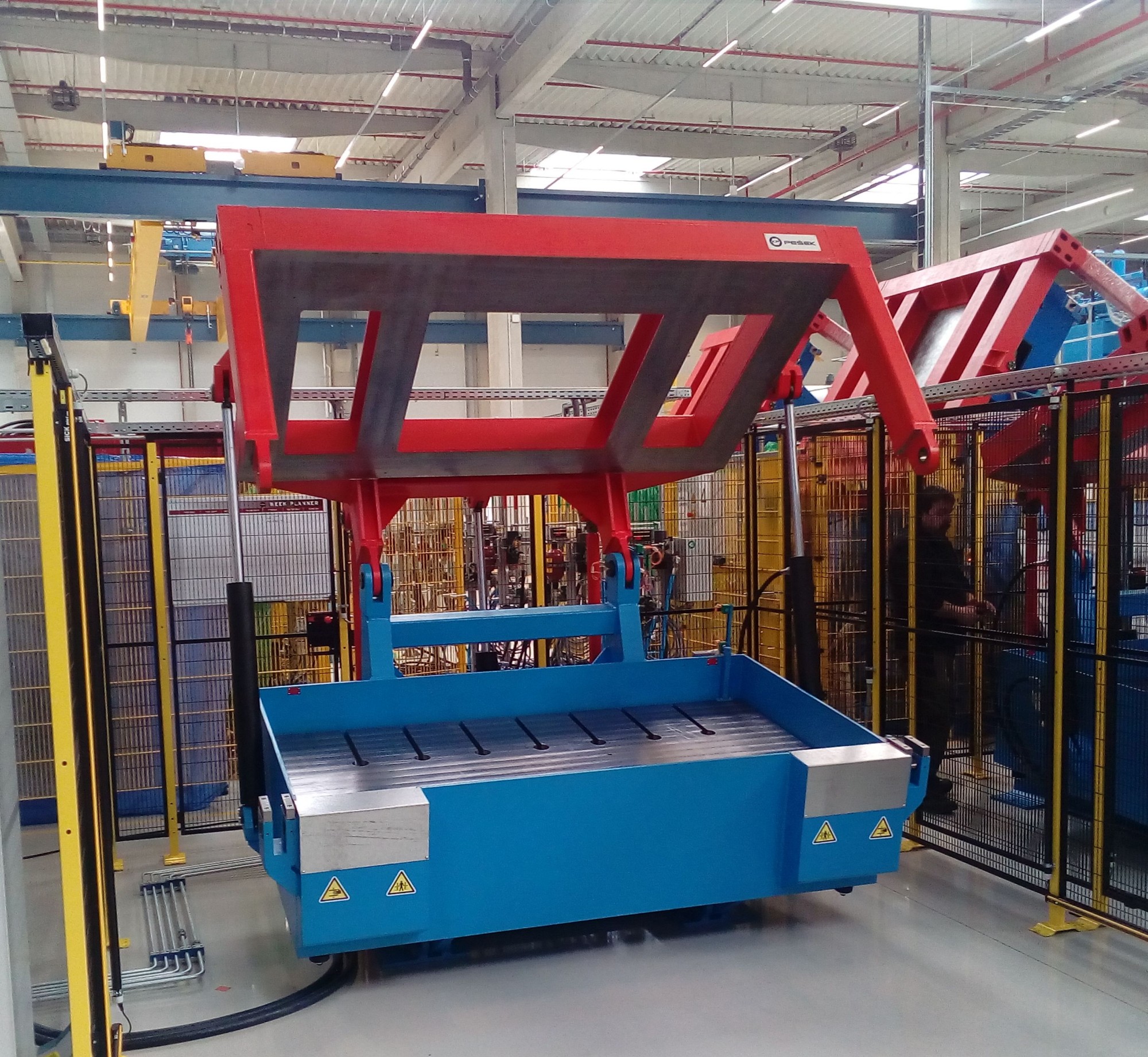

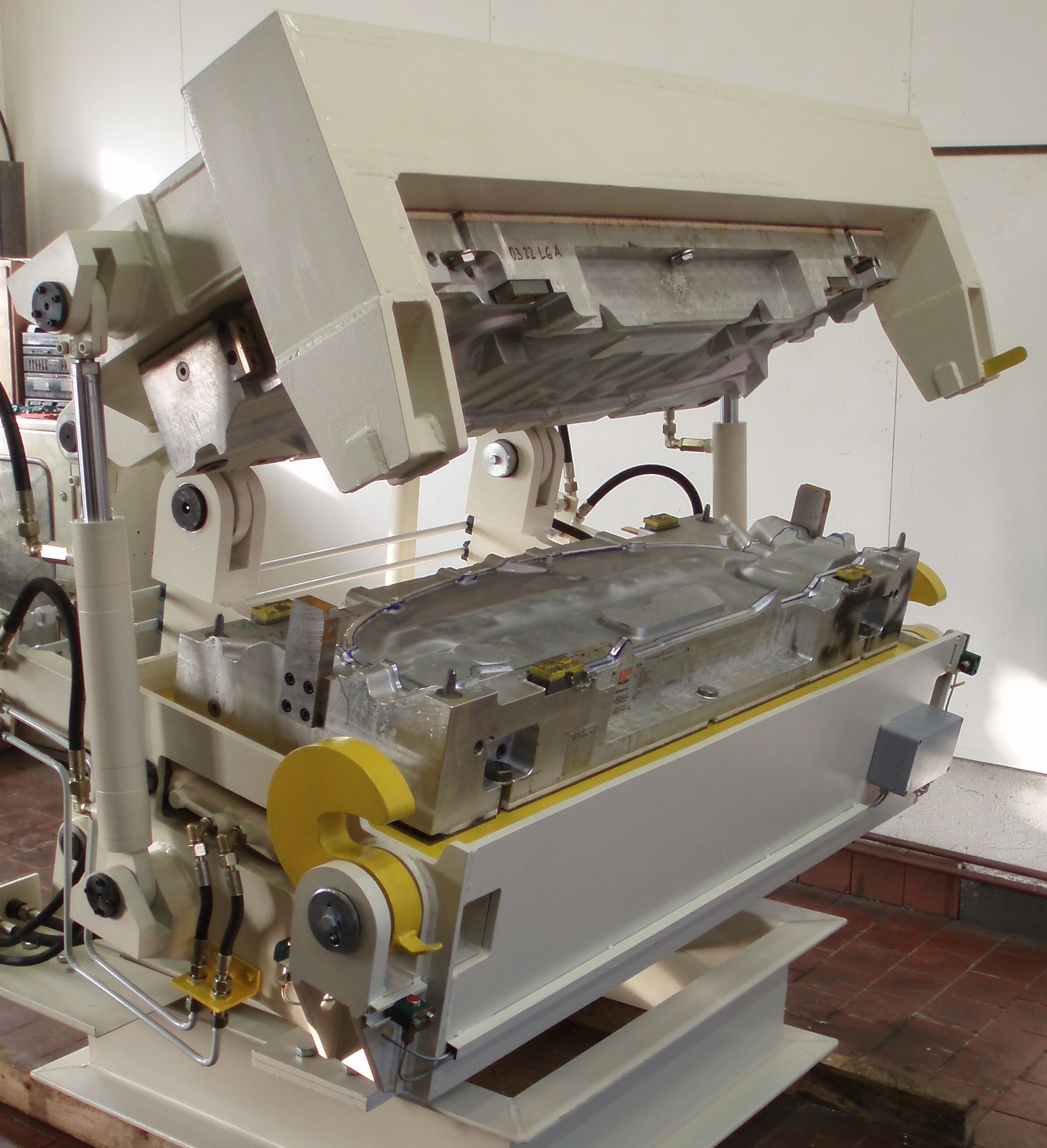

Mould carrier, type 200 (year of production 2019)

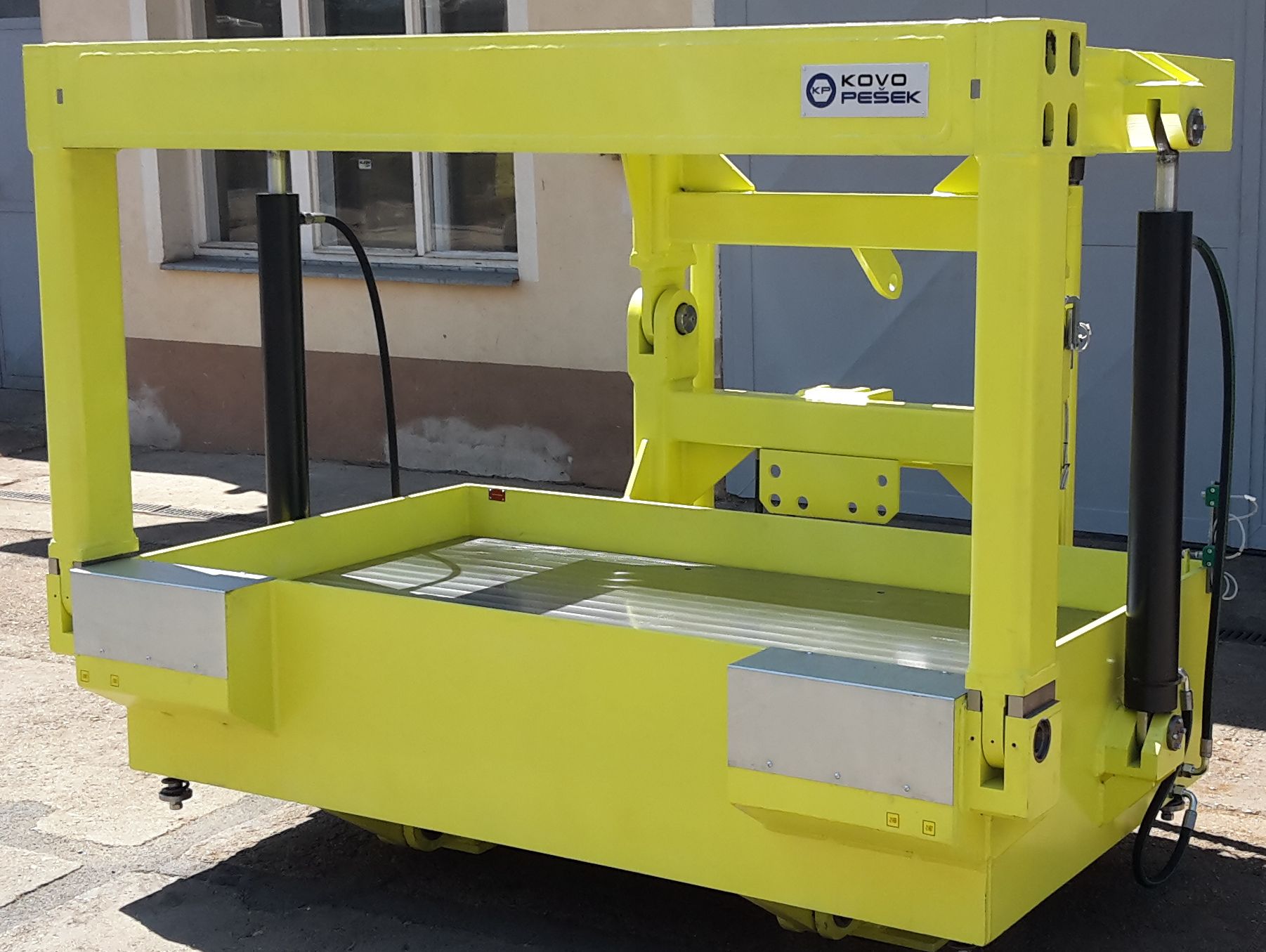

Mould carrier, type 200 (year of production 2015)

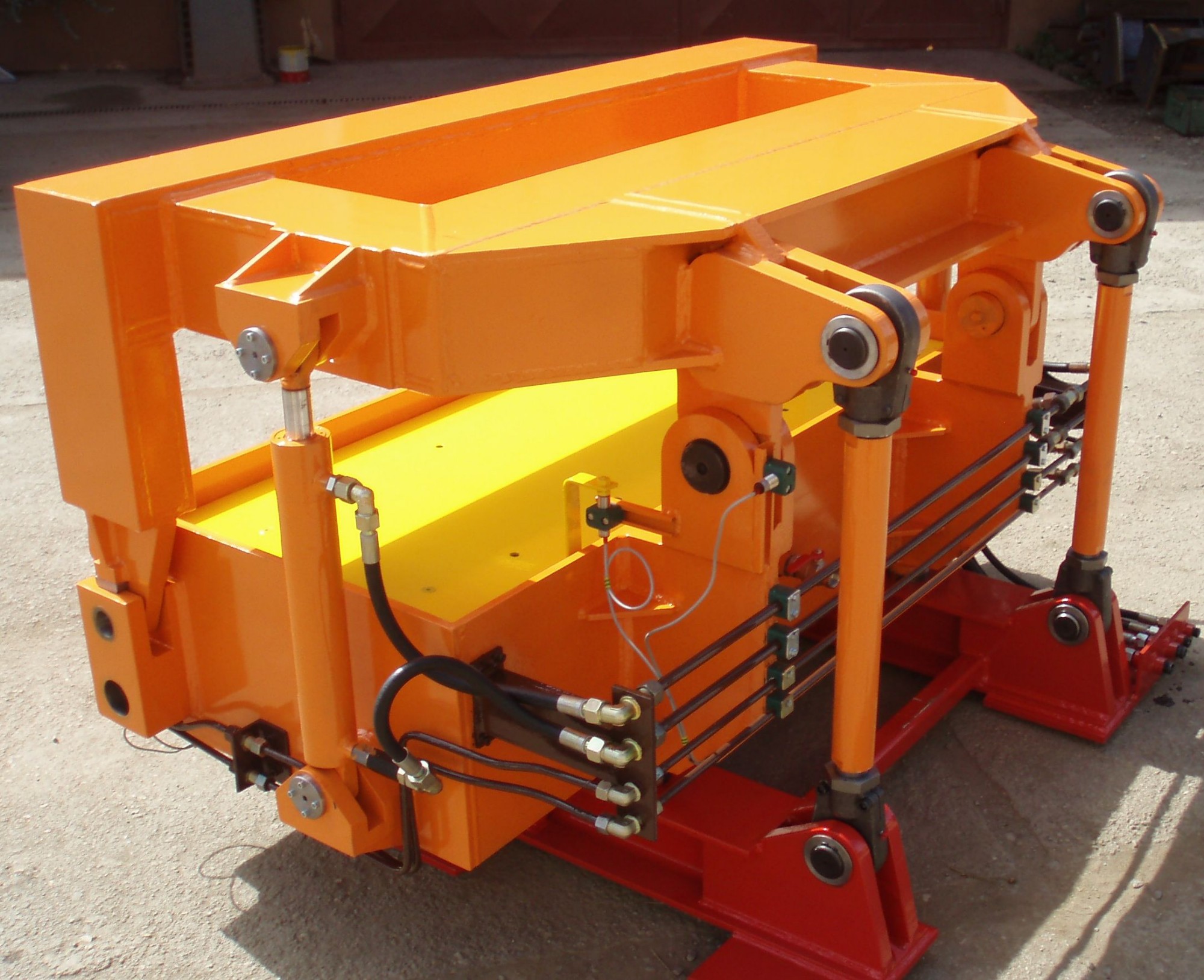

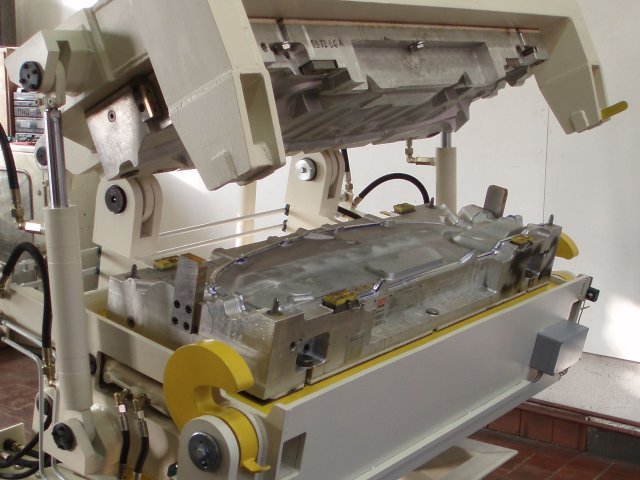

Mould carrier, type 200 (year of production 2006)
Mould carrier, type 200 (year of production 2008)
Mould carrier, type 200 (year of production 2005)

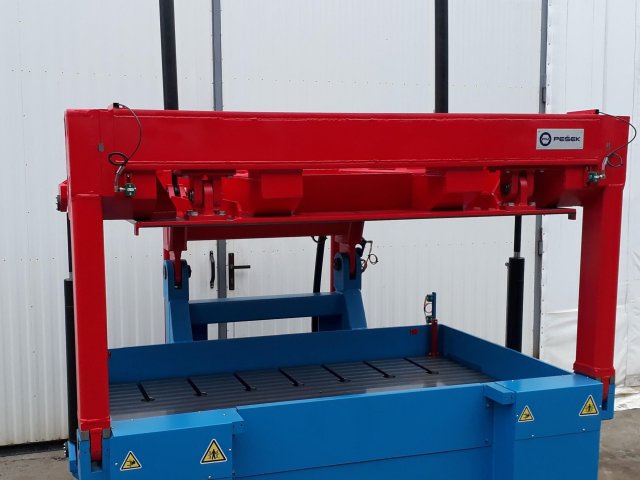

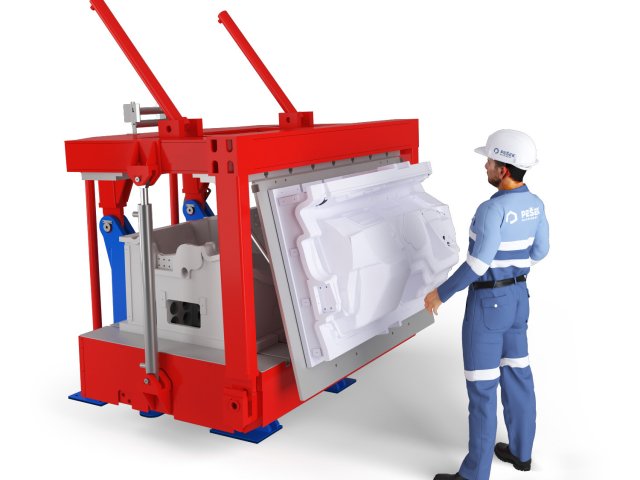

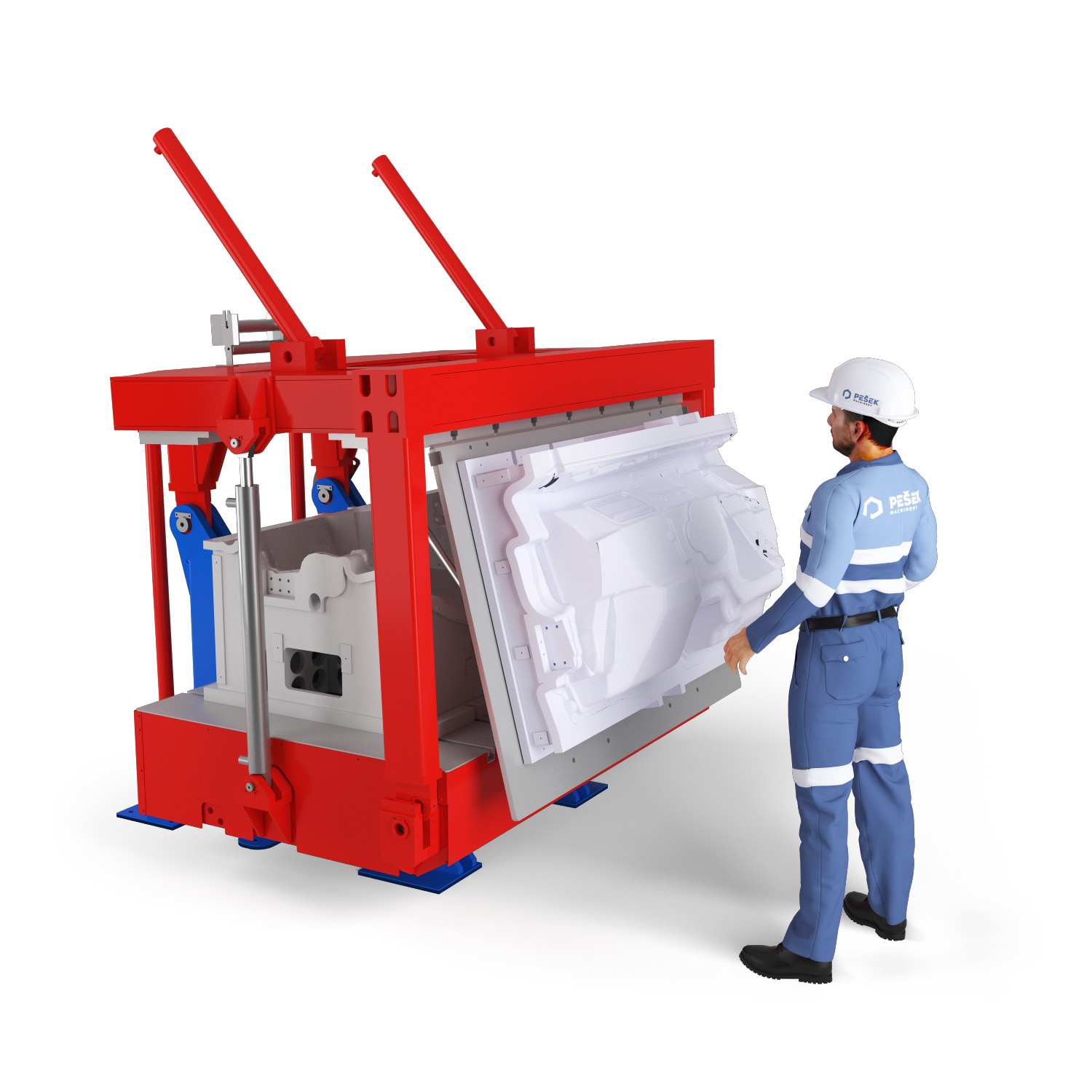

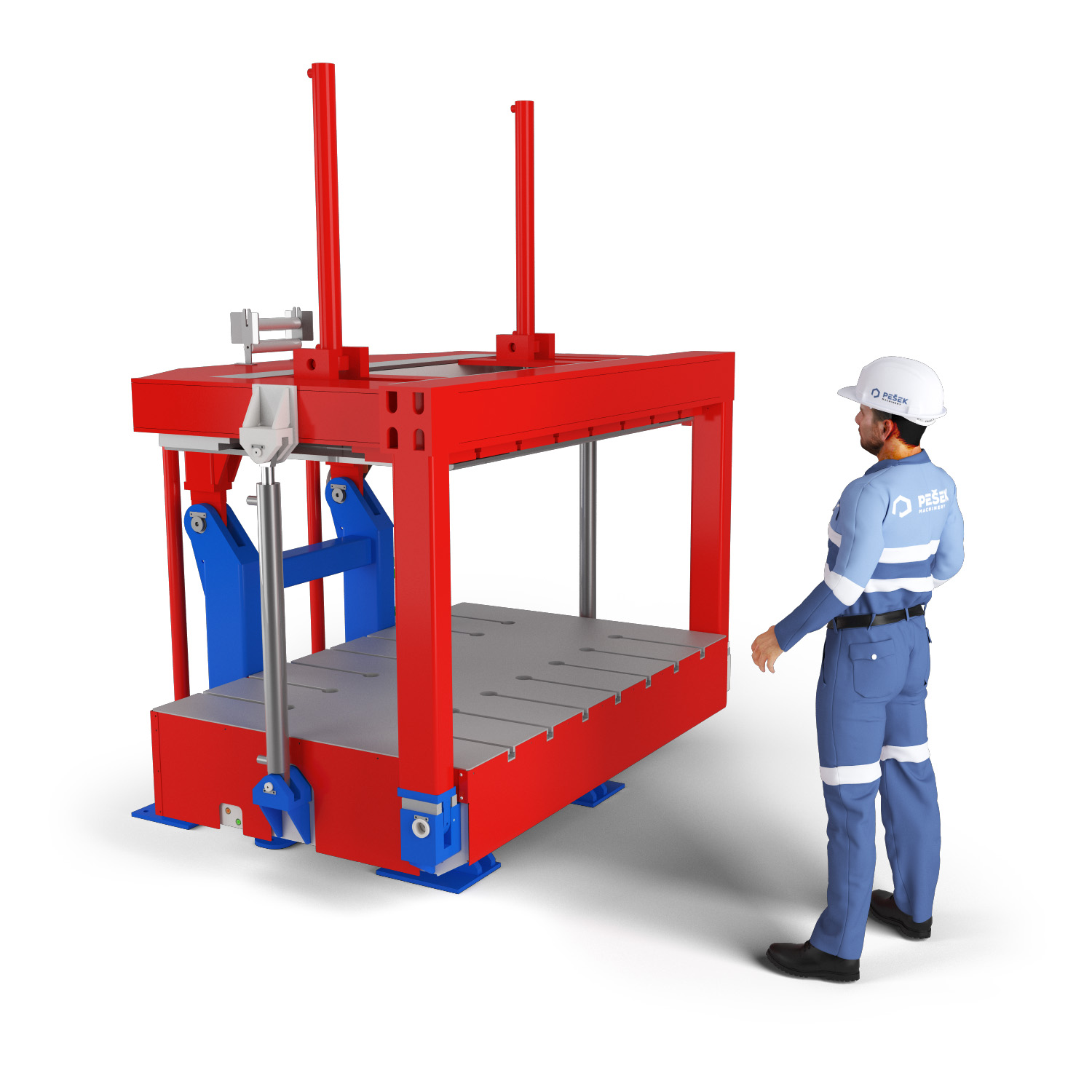

Mould carrier, type 300
Technical parameters
- Lower tipping frame 20°
- Top tipping plate
- Clamping plate lifted by air bellows or hydraulic cylinders of up to 200 mm
- Precise clamping plate guiding by means of a rack and gearwheel system
- Tool clamping in different ways
- Maximum closing force: A 240 kN, B 300 kN
- Maximum tool weight: A 3,000 kg, B 4,000 kg
- Maximum tool dimensions: A 1550x950x650 mm, B 1900x1100x850 mm

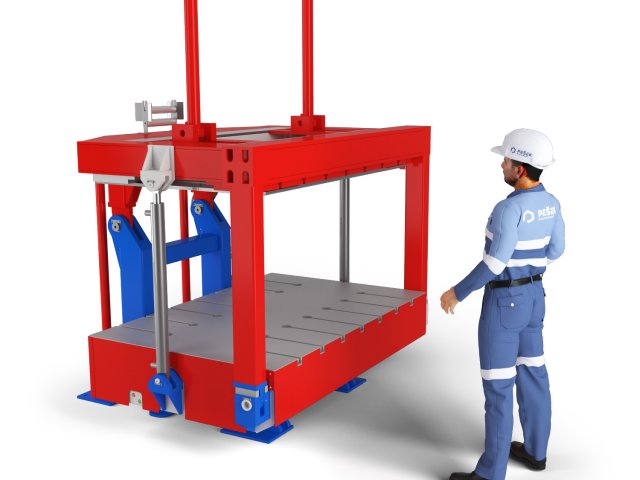

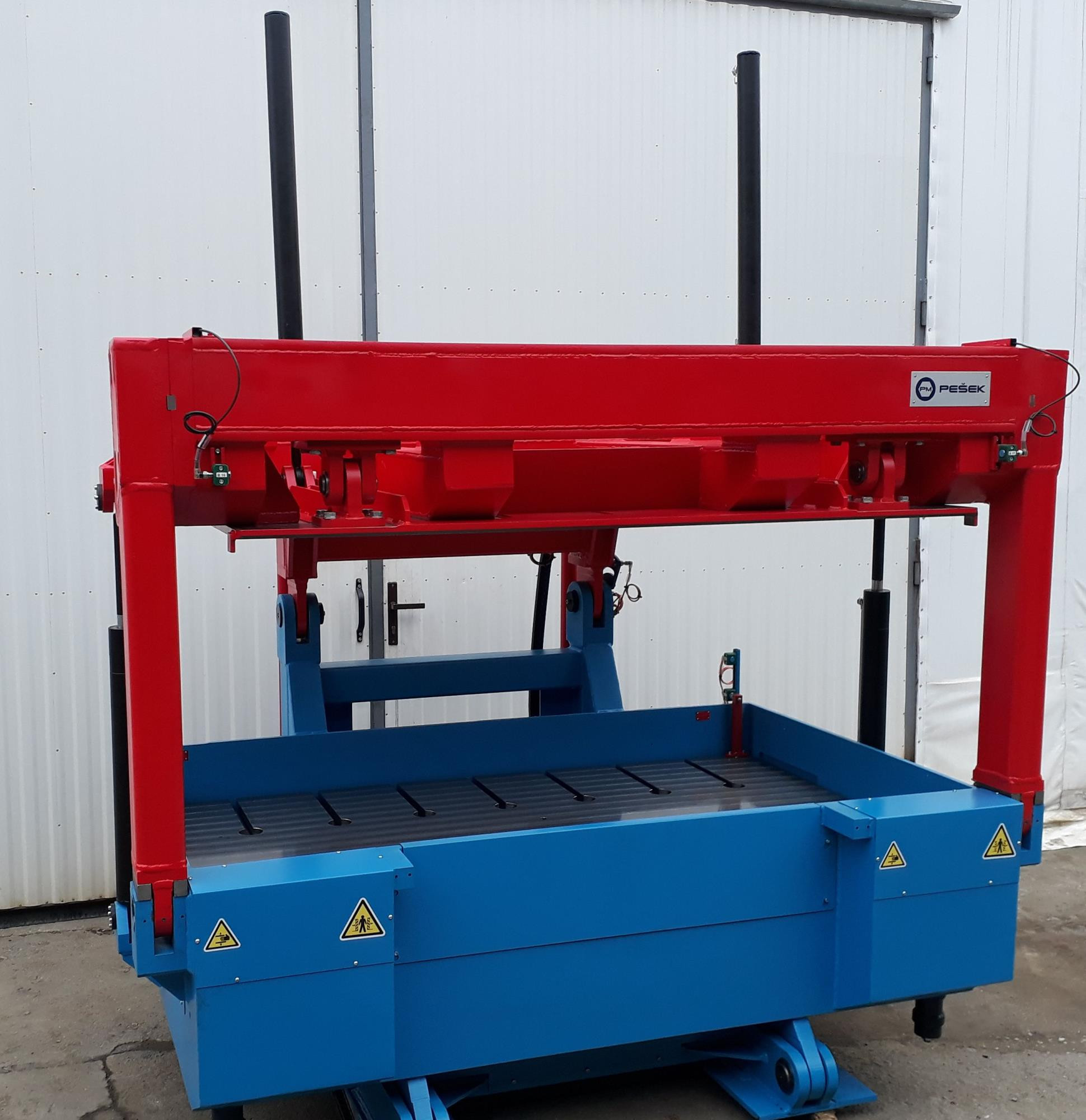

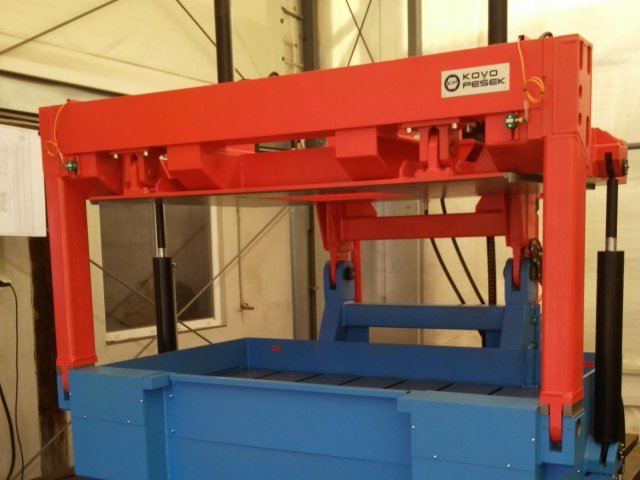

Mould carrier, type 300 (year of production 2019)
Mould carrier, type 300 (year of production 2019)
Mould carrier, type 200 (year of production 2017)
Mould carrier, type 200 (year of production 2017)

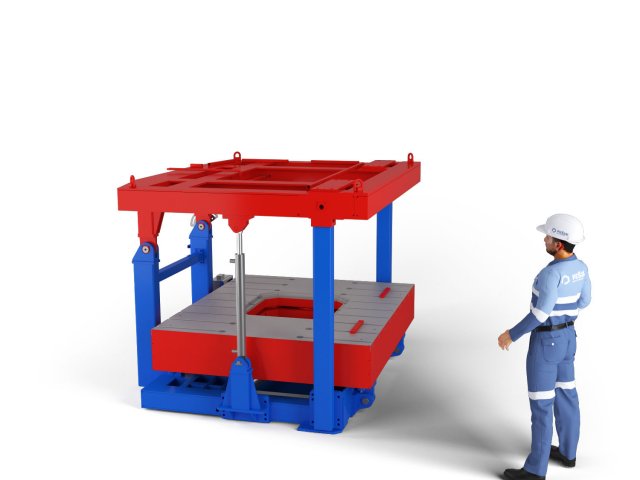

Mould carrier, type 400
Technical parameters
- Lower tipping frame 70°
- Clamping plate lifted by air bellows or hydraulic cylinders of up to 200 mm
- Precise clamping plate guiding by means of a rack and gearwheel system
- Tool clamping in different ways
- Possibility to clamp two tools
- Possibility to clamp a frothing head to the bottom of a mould
- Closing force up to 300 kN
- Maximum tool weight up to 4,000 kg
- Maximum tool dimensions 2180x1850x860 mm

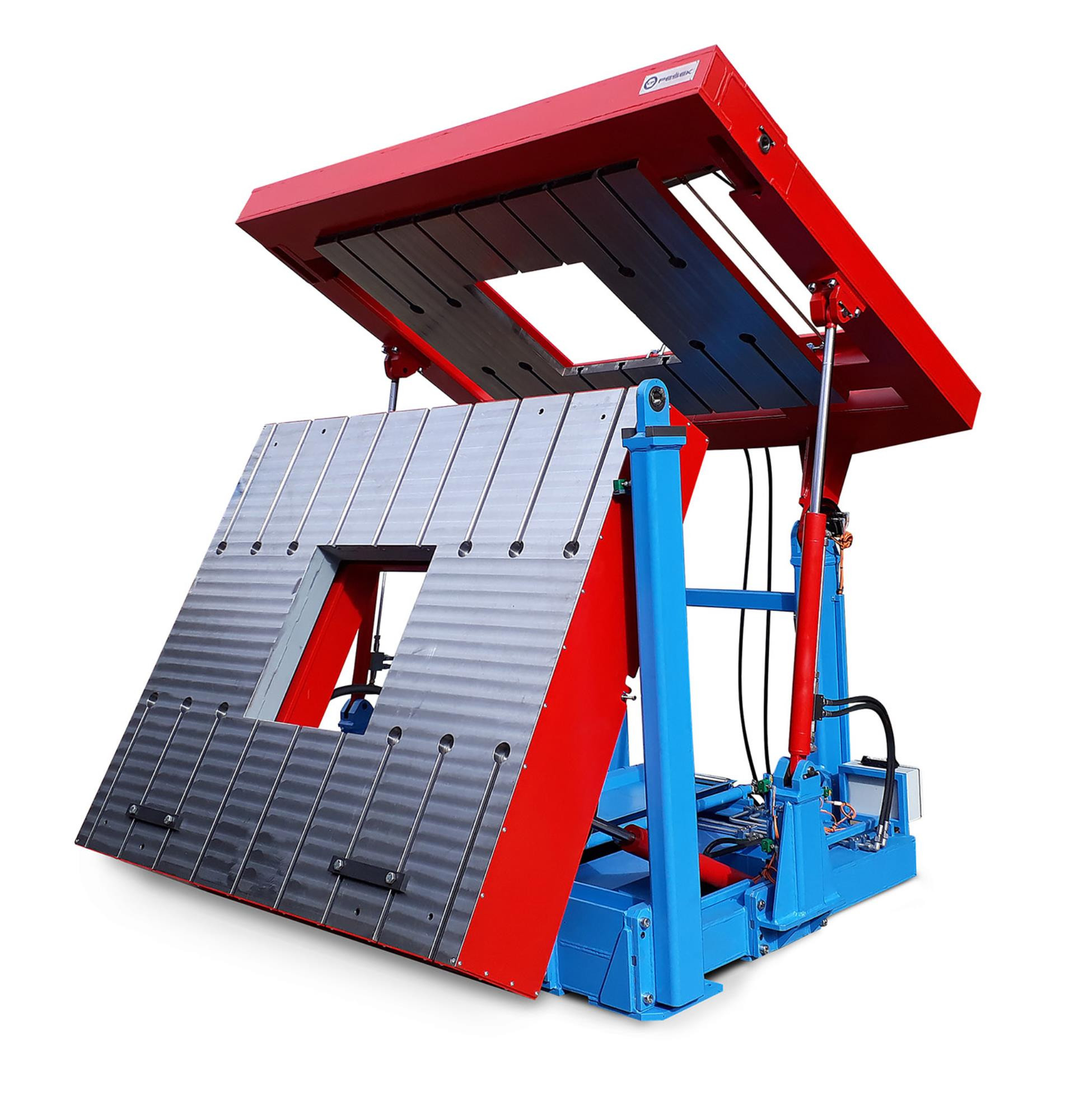

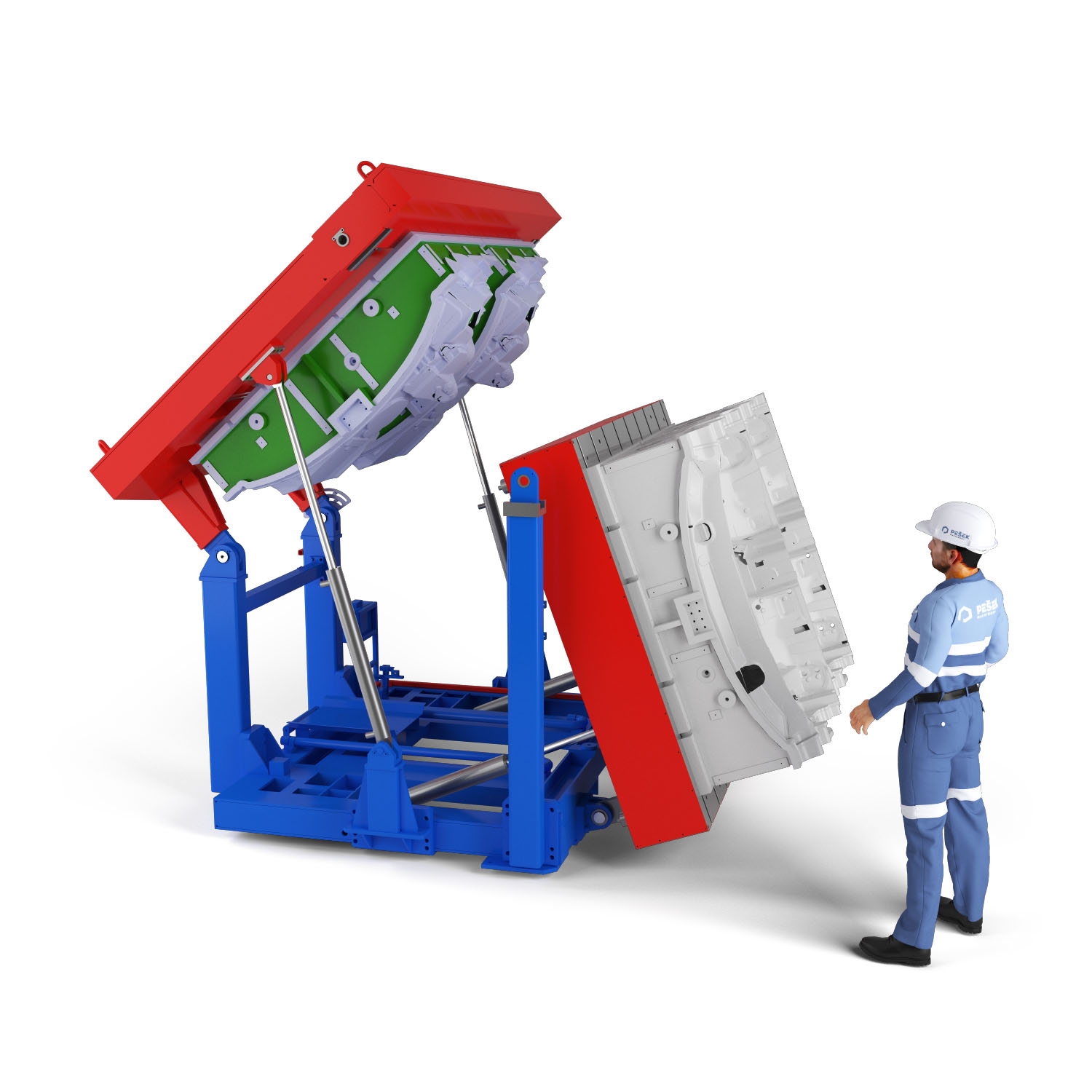

Mould carrier, type 400

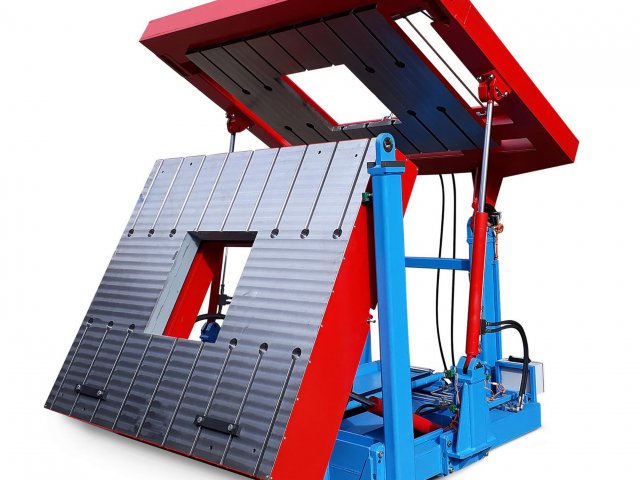

Mould carrier, type 400

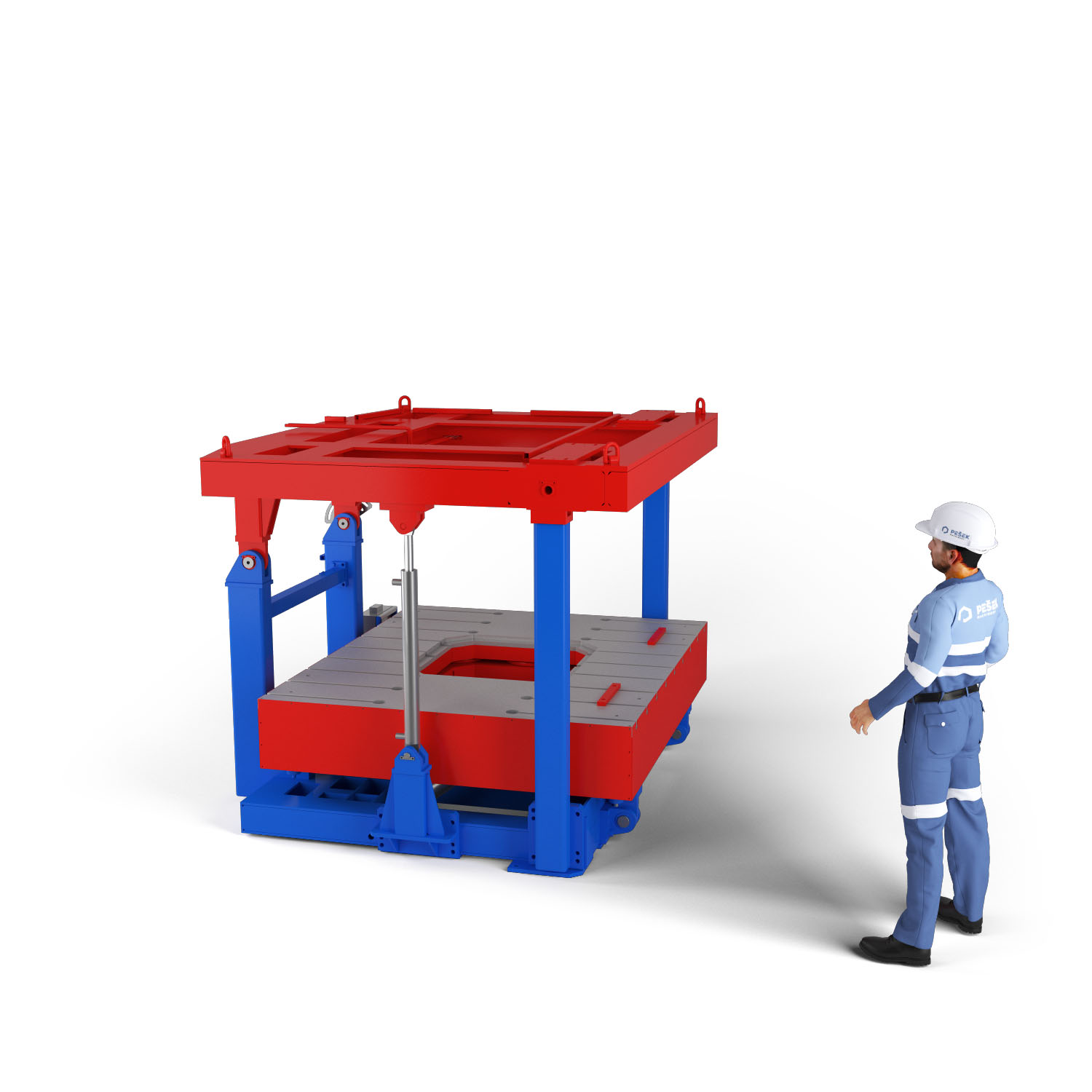

Mould carrier, type 400

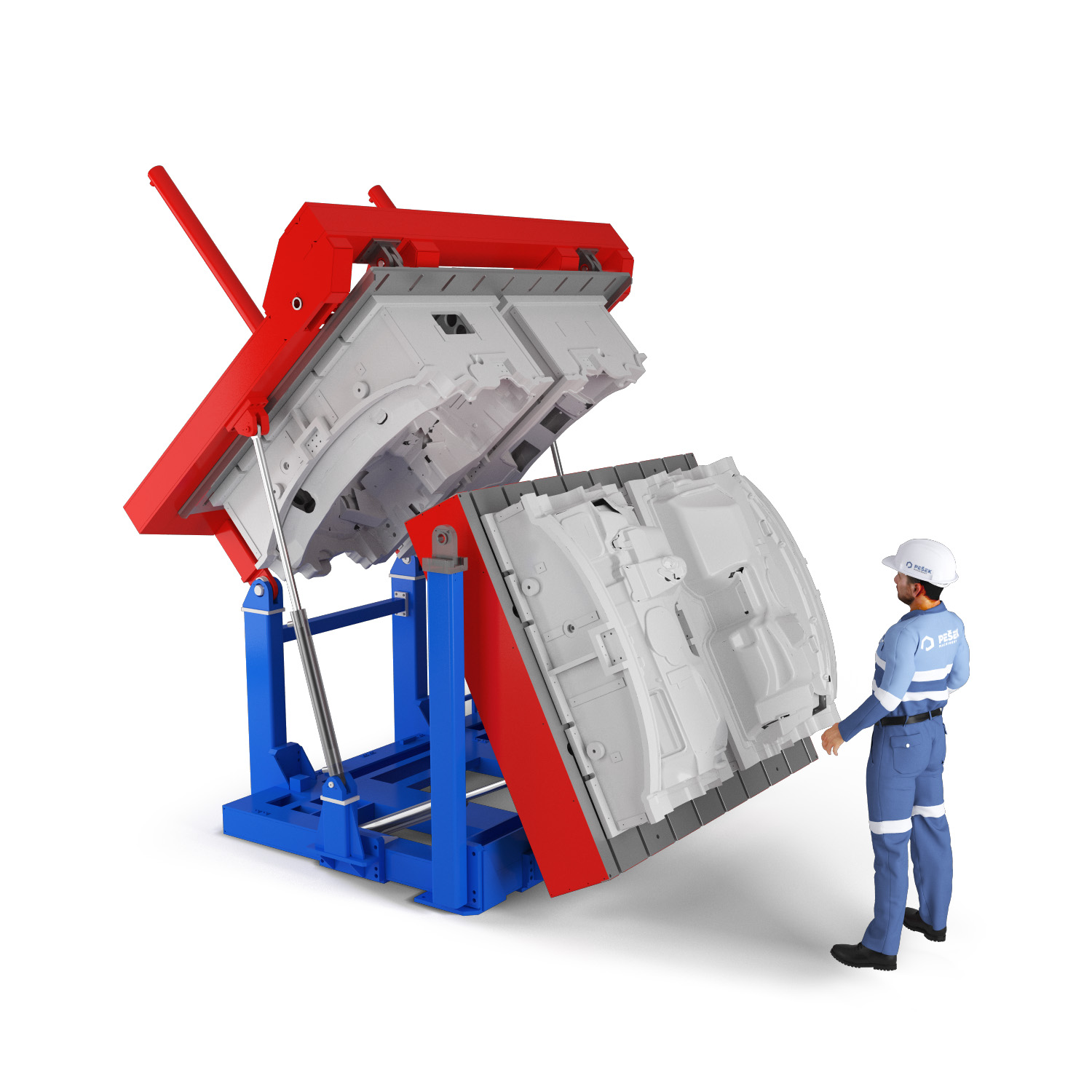

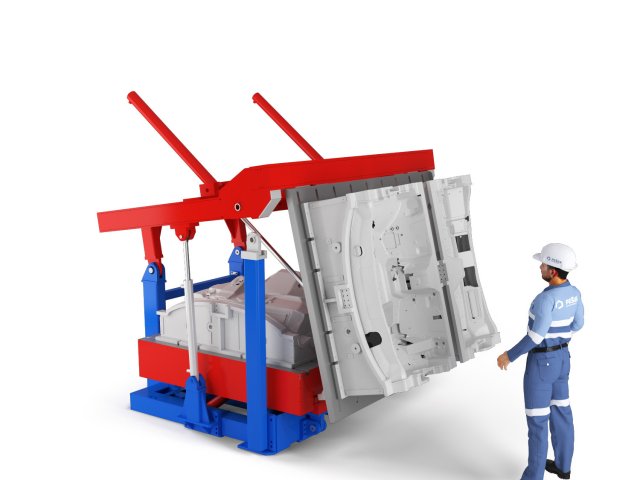

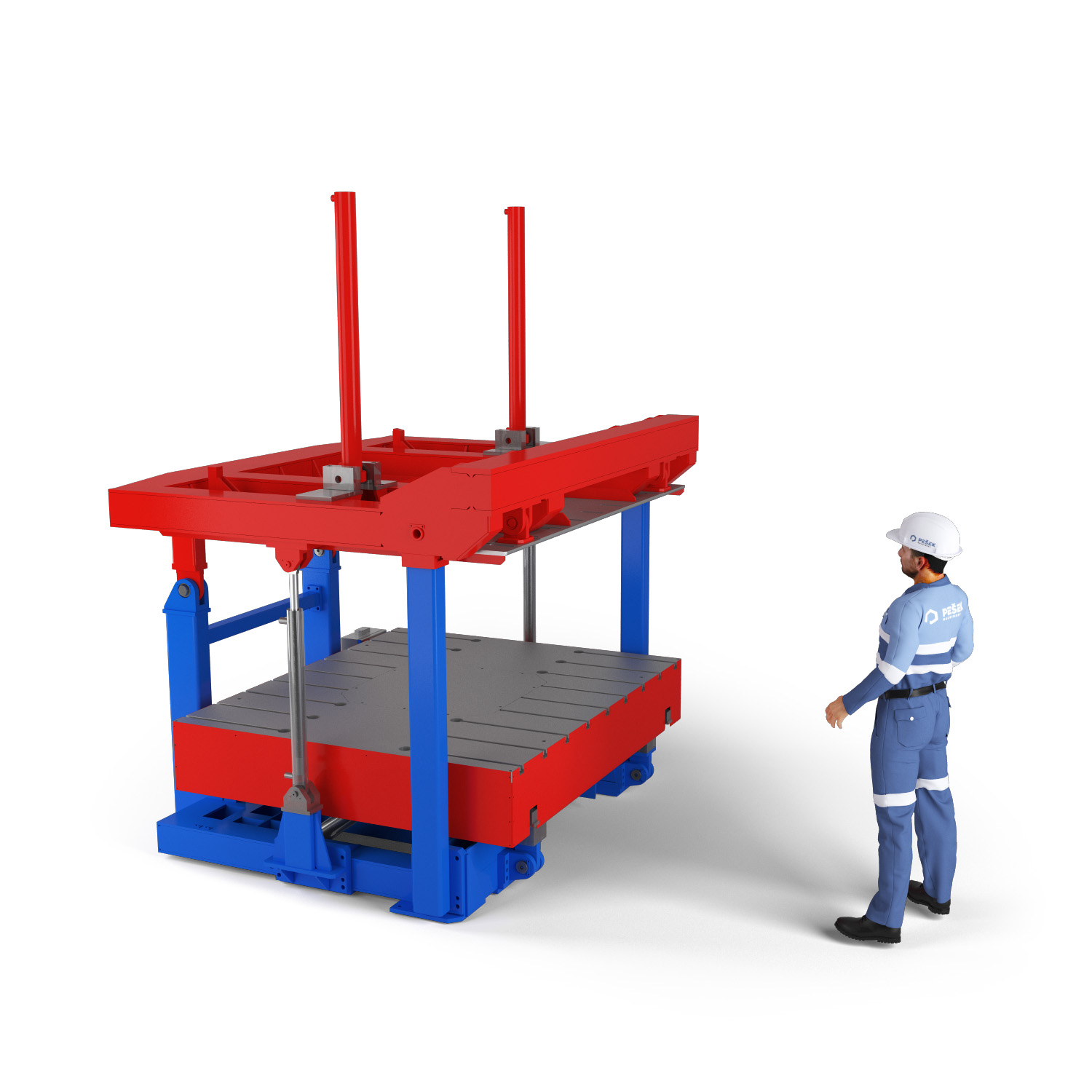

Mould carrier, type 500
Technical parameters
- Lower tipping frame 70°
- Top tipping frame 80°
- Clamping plate lifted by air bellows or hydraulic cylinders of up to 200 mm
- Precise clamping plate guiding by means of a rack and gearwheel system
- Tool clamping in different ways
- Possibility to clamp two tools
- Possibility to clamp a frothing head to the bottom of a mould
- Closing force up to 300 kN
- Maximum tool weight up to 4,000 kg
- Maximum tool dimensions 2180x1850x860 mm
- Also suitable for tool service

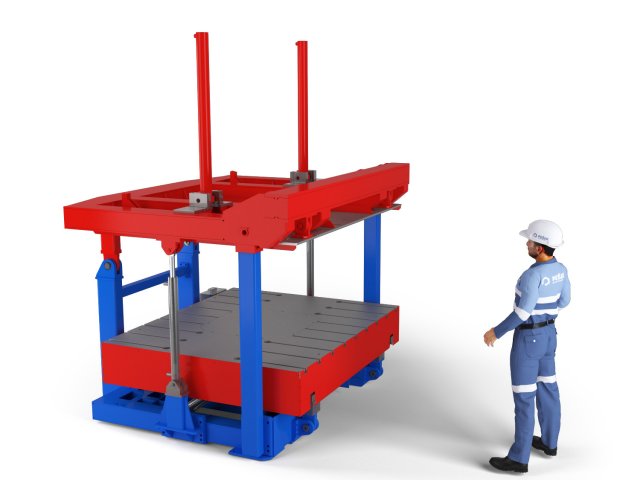

Mould carrier, type 500
Mould carrier, type 500
Mould carrier, type 500

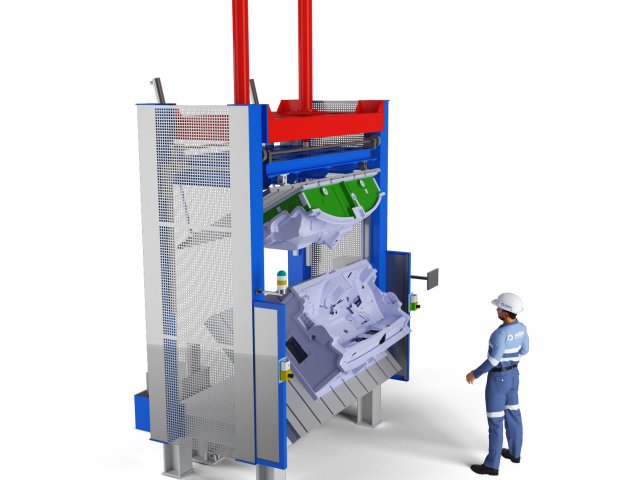

Mould carrier, type 1000
Technical parameters
- Vertical tool carrier
- Clamping plates dimensions according to client’s request
- Tool clamping in different ways
- Closing force according to client’s request
- Clearance height between the plates when closed and opened as required
- The carrier can be integrated into an automated production line

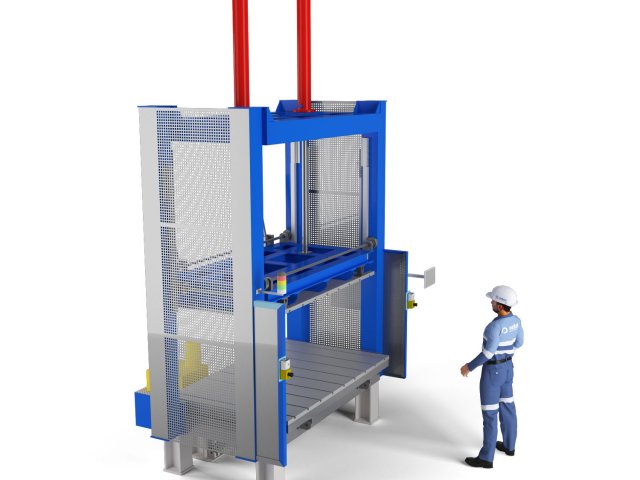

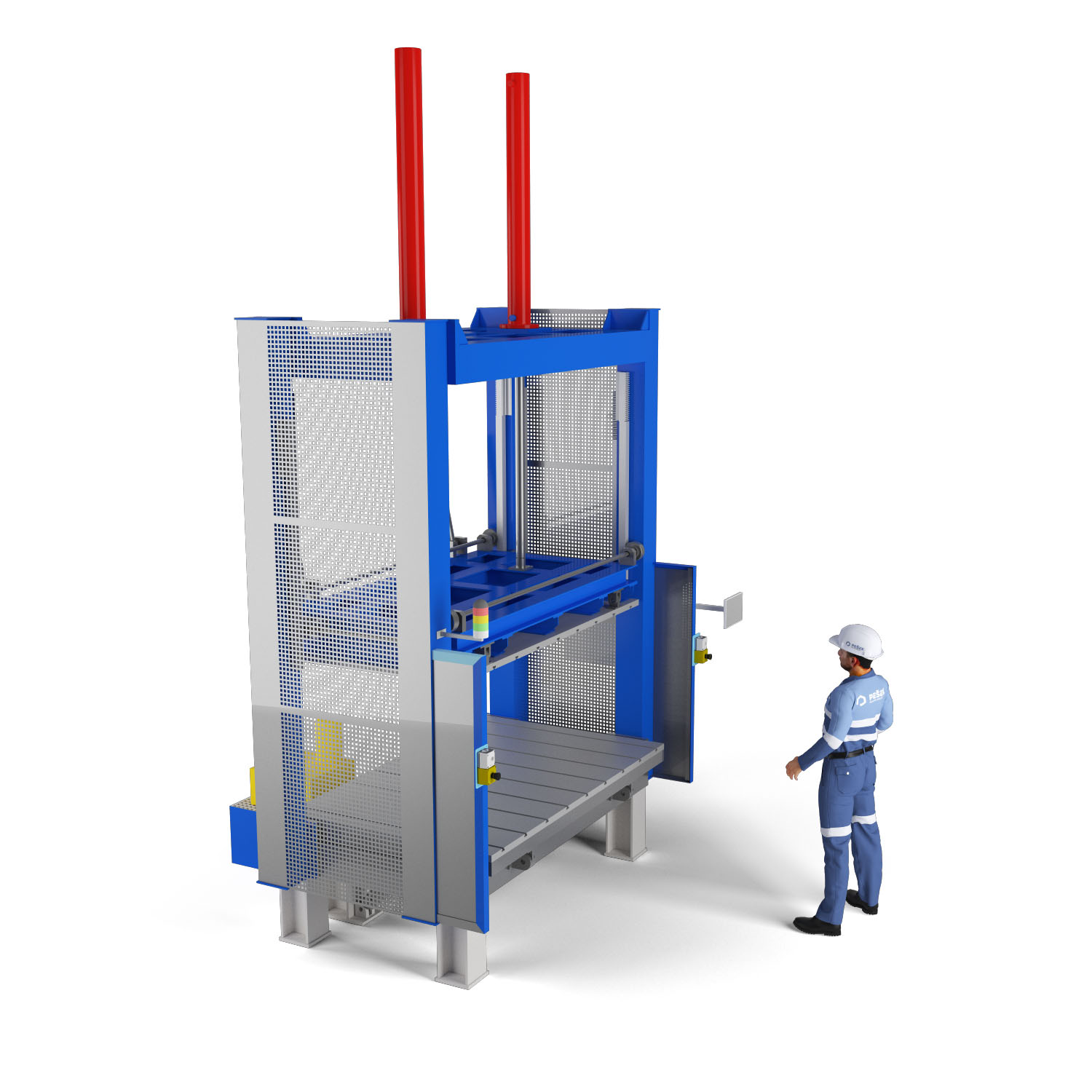

Mould carrier, type 1000

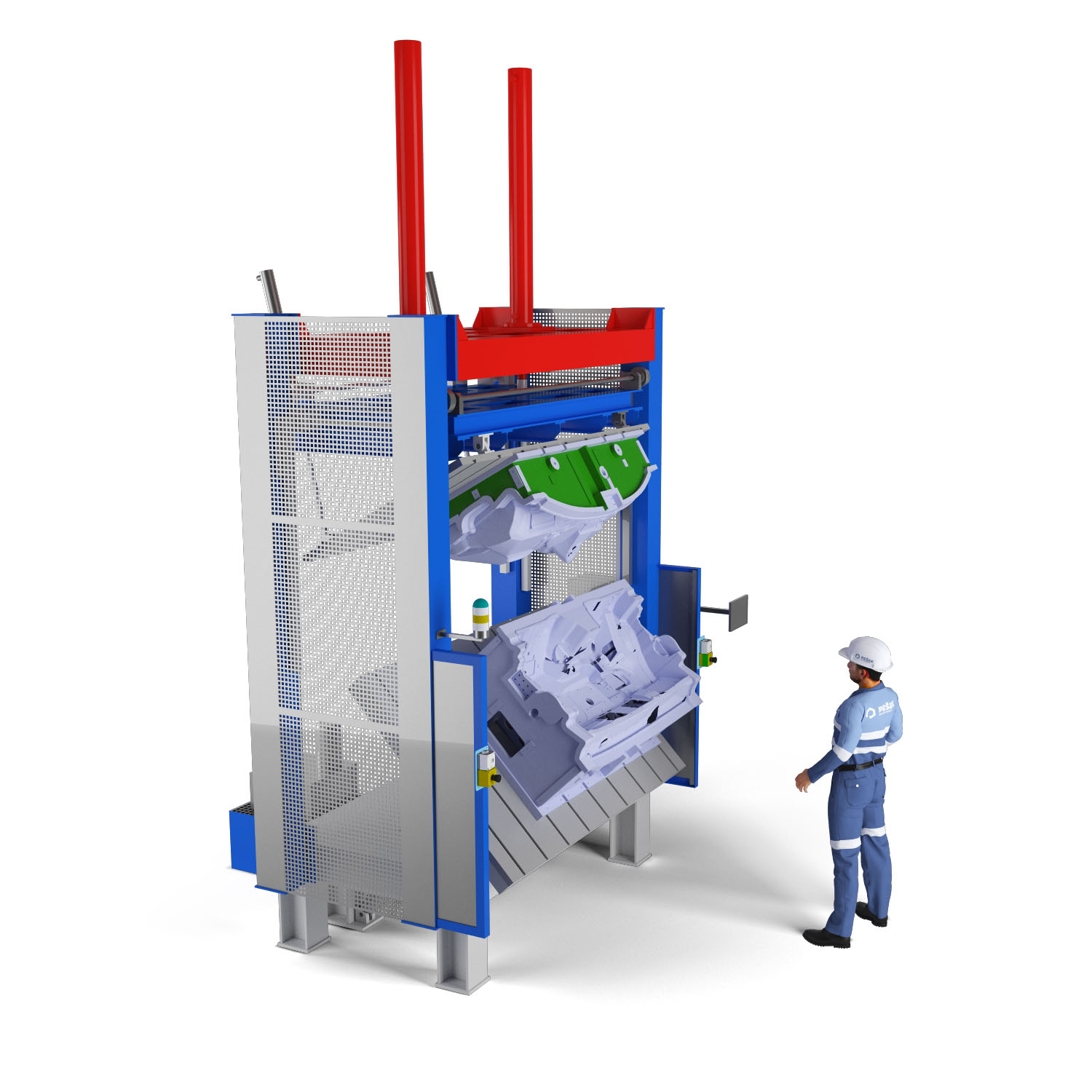

Mould carrier, type 1000
