Pneumatic mould carriers

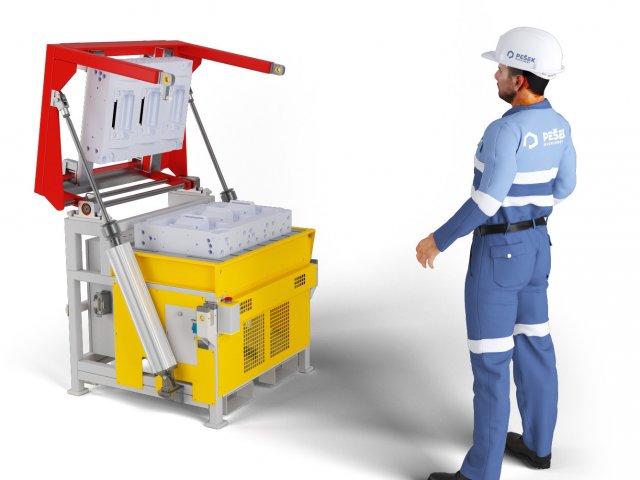

Mould carrier, type 10
Technical parameters
- Top tipping frame 75°–90°C
- Pneumatic or electrical and pneumatic control of the entire system
- Two-hand controls
- Clamping plate lifted by air bellows
- Precise lower clamping plate guidance
- Tool clamping in different ways
- Closing force up to 37 kN
- Maximum tool weight 350 kg
- Maximum tool dimensions 800x550x350 mm
